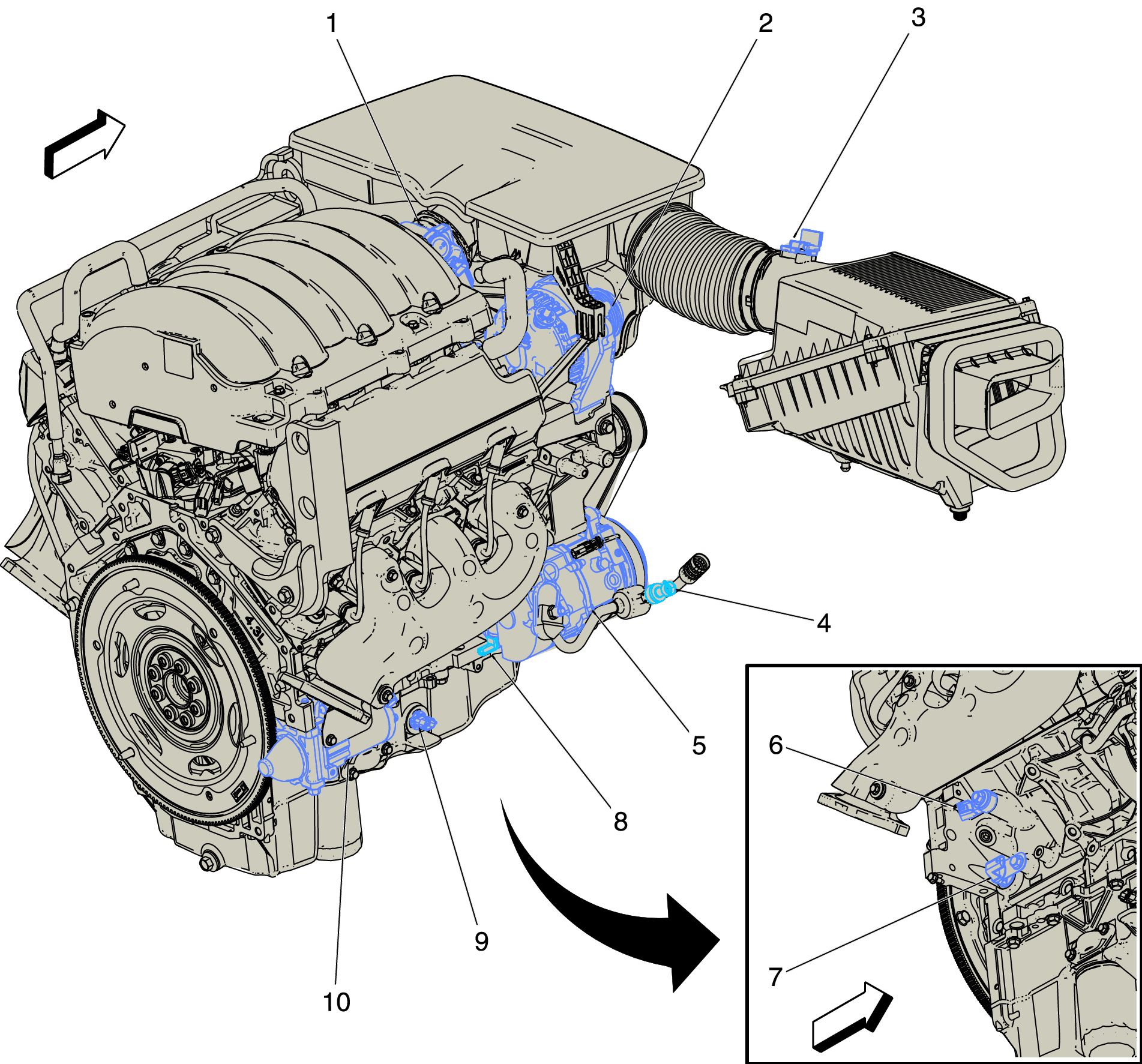

Right Rear Of Engine (LV3) Components
Right Rear Of Engine (LV3) Components
| Items |
|---|
| 1. Q38 Throttle Body Q38 Throttle Body (L83/L86/LV3/L8B) |
| 2. G13 Generator G13 Generator X1 (L96-UYV)G13 Generator X1 (L96+VYU)G13 Generator X2 |
| 3. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 4. B1 A/C Refrigerant Pressure Sensor (C67 or CJ2) B1 A/C Refrigerant Pressure Sensor |
| 5. Q2 A/C Compressor Clutch (C67 or CJ2) Q2 A/C Compressor Clutch |
| 6. B68B Knock Sensor 2 (except L5P) B68B Knock Sensor 2 |
| 7. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (L8B/LV3/L83/L86) |
| 8. Q46 A/C Compressor Solenoid Valve (C67 or CJ2) Q46 A/C Compressor Solenoid Valve |
| 9. B35 Engine Oil Level Switch (1500 or L5P) B35 Engine Oil Level Switch (L83/L86/LV3/L8B) |
| 10. M64 Starter Motor M64 Starter Motor X1 (LV3/L8B/L83/L86) |
