Rear Window Defogger System Components
The rear window defogger system consists of the following components:
- HVAC Control Module
- Info Display Module
- Rear Defogger Relay
- Rear Defogger Grid
- Driver Outside Rearview Mirror
- Passenger Outside Rearview Mirror
- 30A Fuse

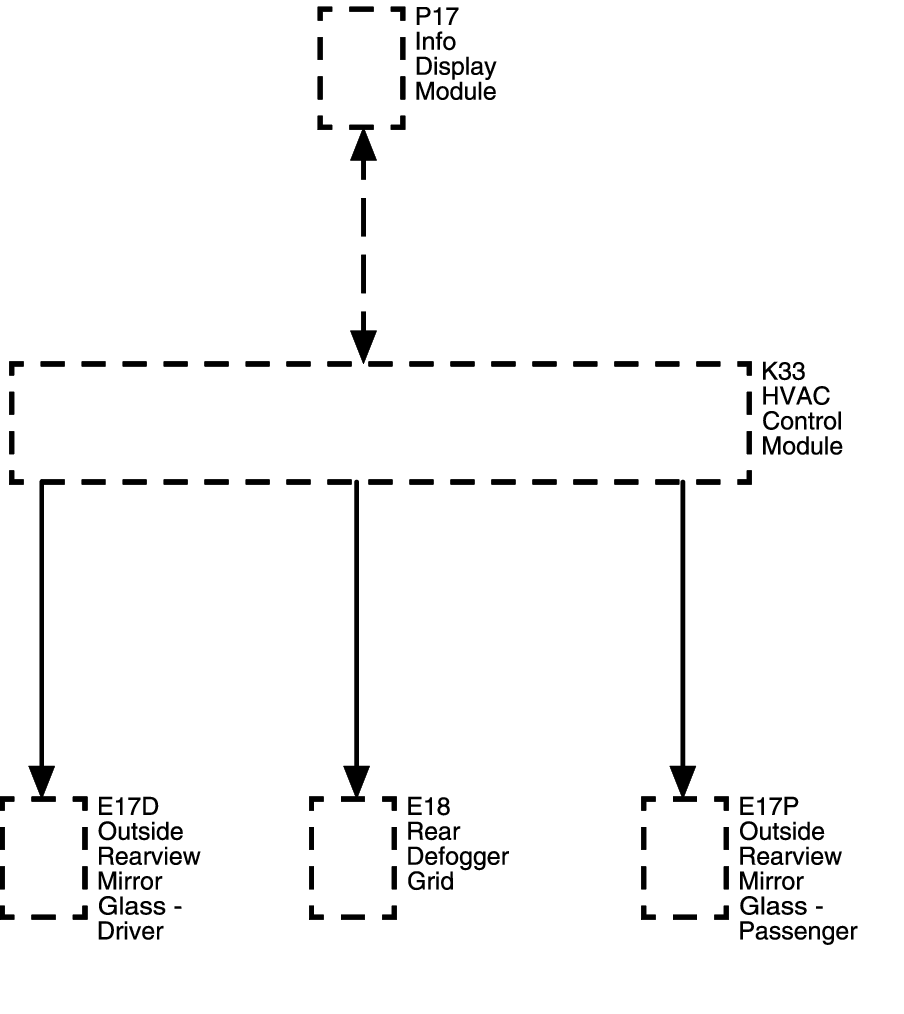

| Callout | Component Name |
|---|---|
| E17D | E17D Outside Rearview Mirror Glass - Driver |
| E18 | E18 Rear Defogger Grid |
| E17P | E17P Outside Rearview Mirror Glass - Passenger |
| P17 | P17 Info Display Module |
| K33 | K33 HVAC Control Module |
