Communication Interface Module Replacement
Communication Interface Module Replacement
Courtesy of GENERAL MOTORS COMPANY

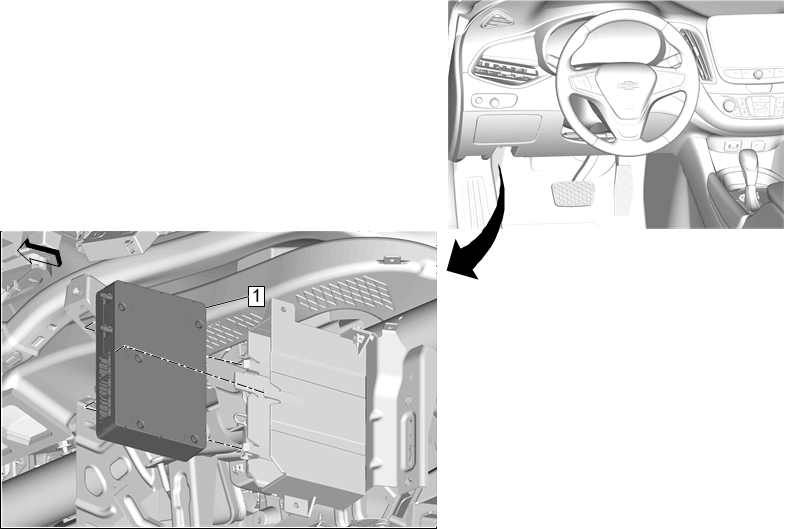

Callout
Component Name
1
Communication Interface Module
Procedure
Push the 3 retaining tabs outward and slide the module forward.
Disconnect the electrical connectors.
Control Module References
for programming and setup information, if required.
