Installation Procedure

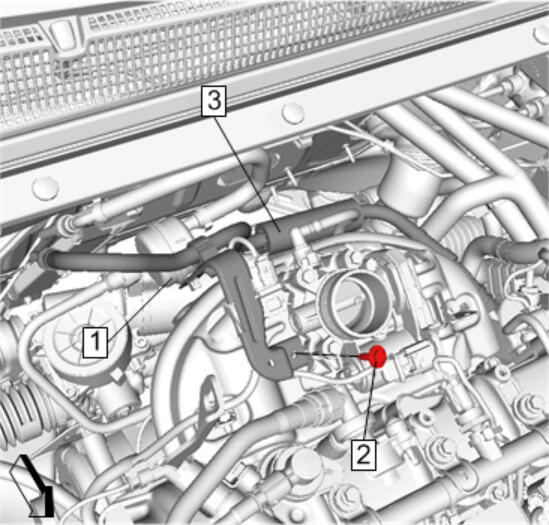

Fuel Feed Front Pipe (3) - Connect - Metal Collar Quick Connect Fitting Service [2x]
- Fuel Feed Front Pipe Bolt (2) - Install and tighten 9 N.m (80 lb in)
- Evaporative Emission Front Pipe Accumulator (1) - Install

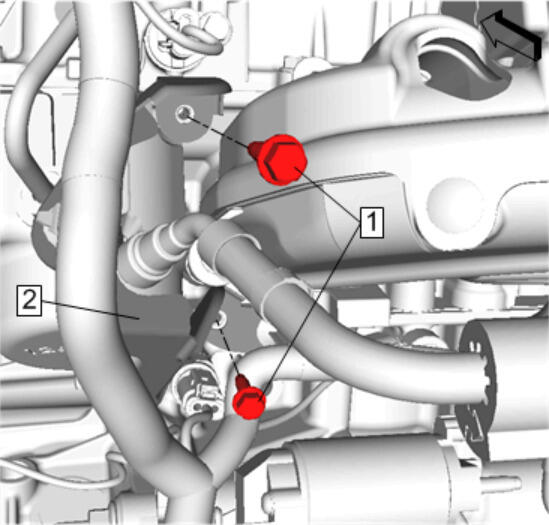

Engine Control Module and Engine Wiring Harness Bracket (2) - Install
- Engine Control Module and Engine Wiring Harness Bracket Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
- Intake Manifold Cover - Install - Intake Manifold Cover Replacement
- Cycle ignition to pressurize fuel system and check for fuel leaks.
CAUTION:
Refer to Fastener Caution .
