Human Machine Interface Control Module Bypass Module Replacement

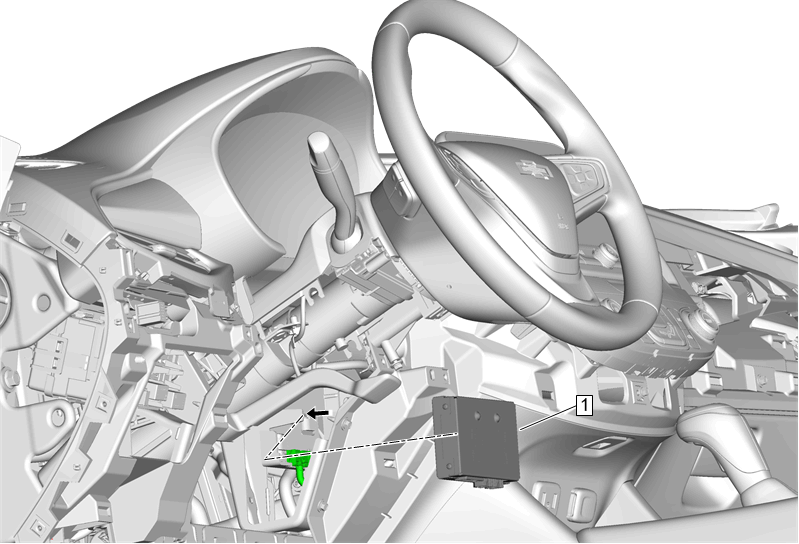

GM4735345
Callout Component Name

Preliminary Procedures

  1. STEERING COLUMN LOWER TRIM COVER REPLACEMENT
  2. INSTRUMENT PANEL KNEE BOLSTER REPLACEMENT
1 Human Machine Interface Control Module Bypass Module

Procedure

  1. Release the retaining tab.
  2. Disconnect the electrical connectors.
