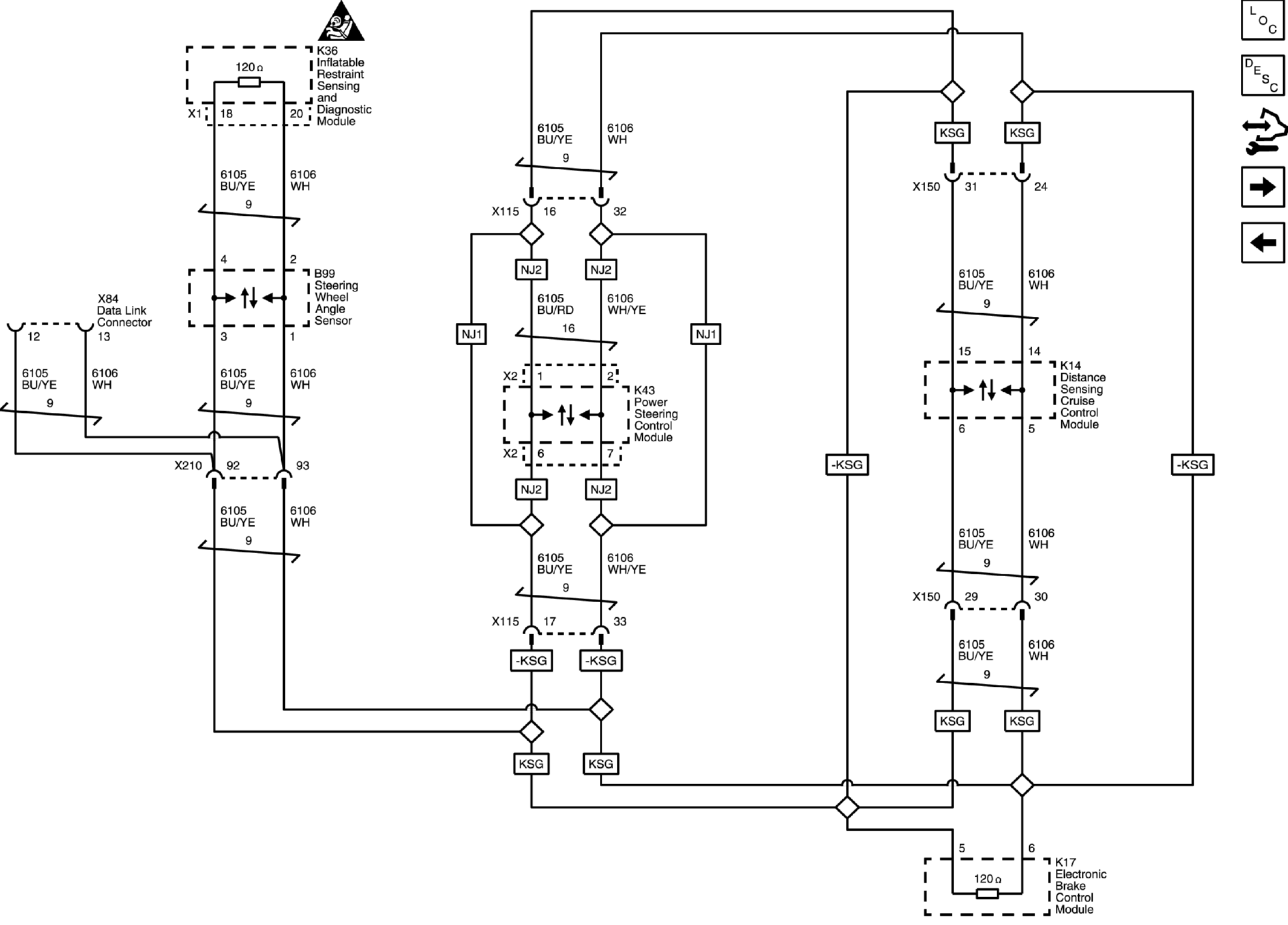

Home >> Chevrolet >> 2018 >> Impala Premier, Gas >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Chassis High Speed GMLAN
