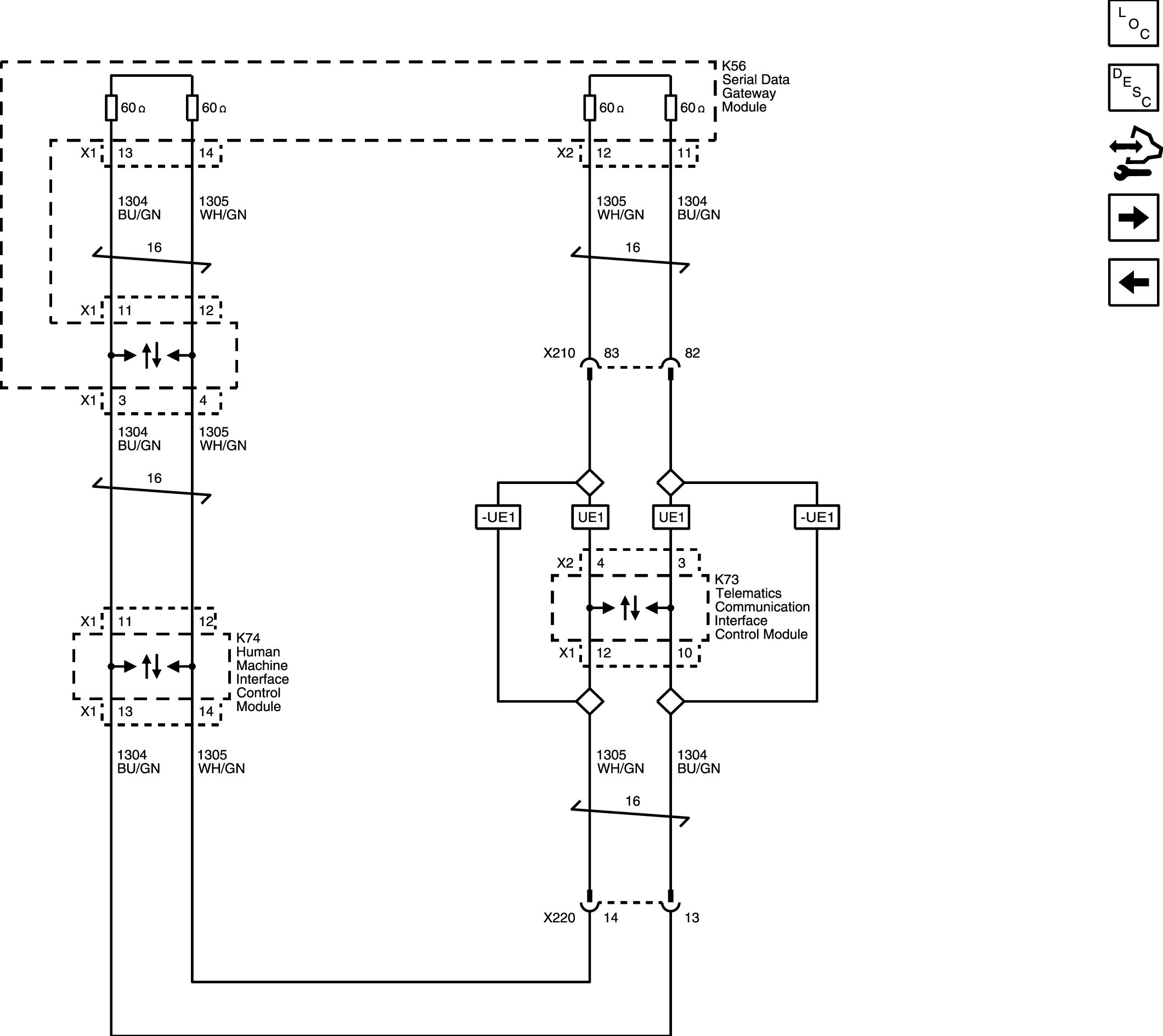

Home >> Chevrolet >> 2018 >> Impala Premier, Gas/Ethanol >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Isolated High Speed GMLAN
