Removal Procedure
- Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX) .

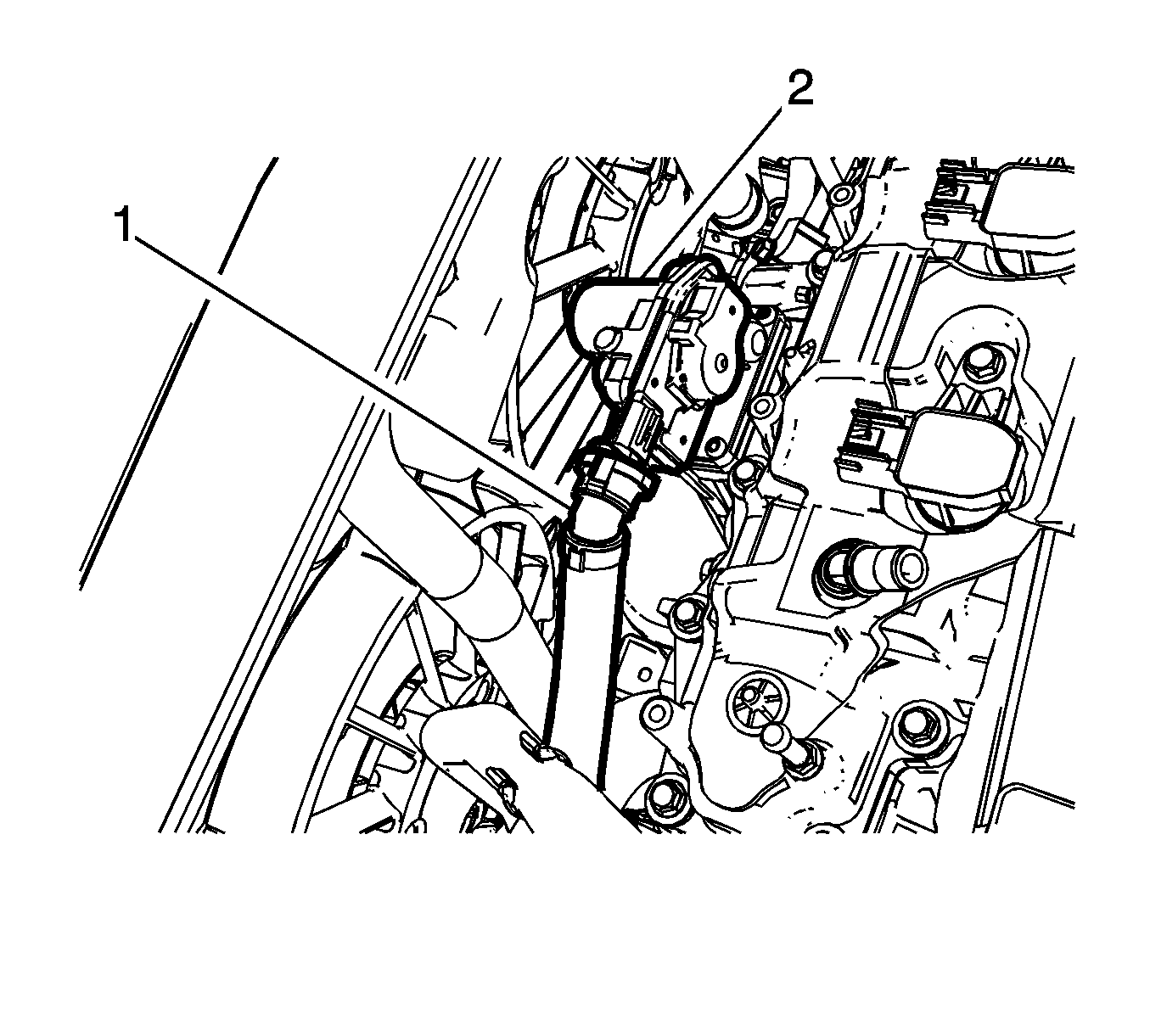

Disconnect the secondary air injection pipe (1) from the right side secondary air injection bypass valve (2). Refer to Plastic Collar Quick Connect Fitting Service .

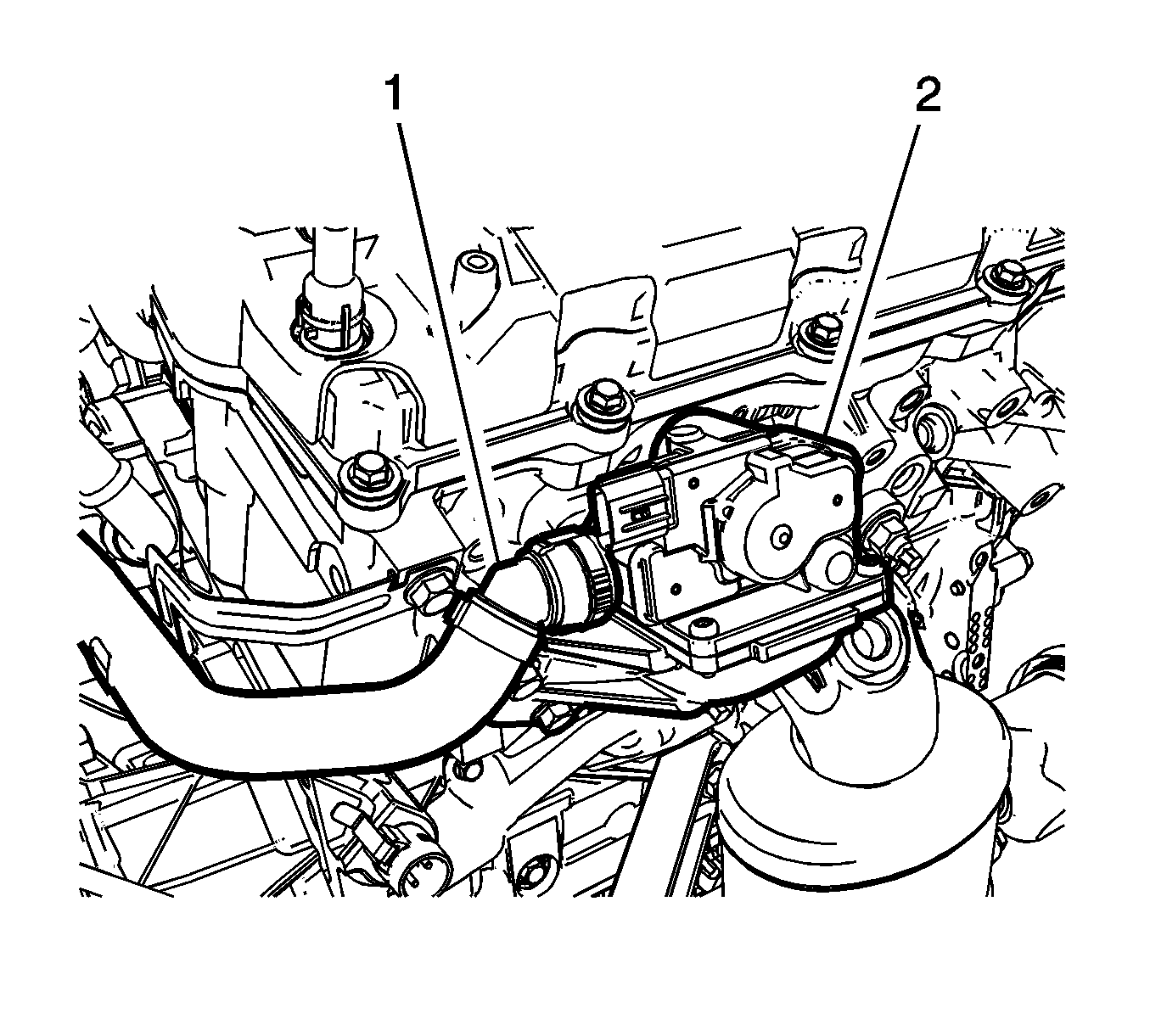

Disconnect the secondary air injection pipe (1) from the left side secondary air injection bypass valve (2). Refer to Plastic Collar Quick Connect Fitting Service .

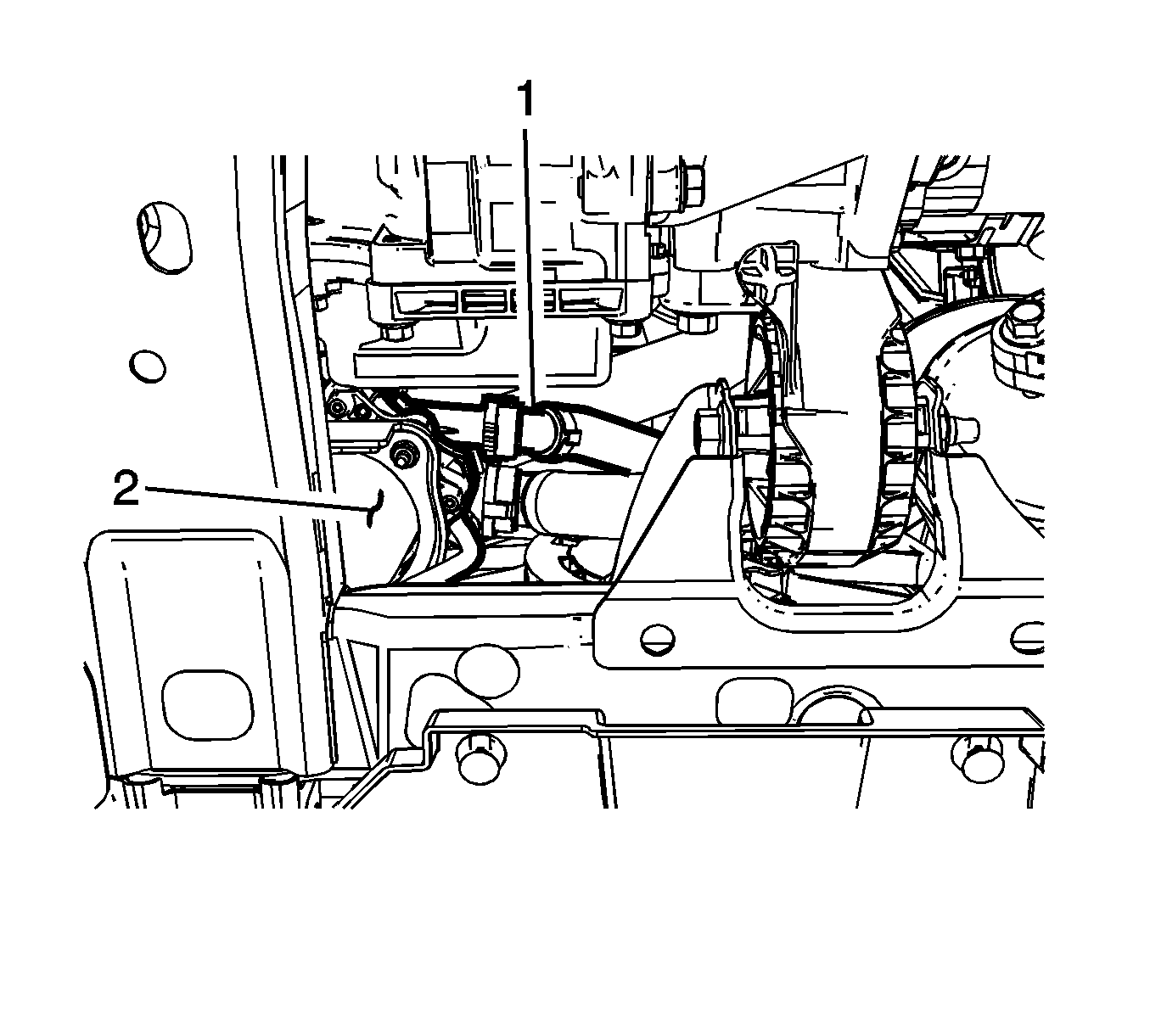

Disconnect the secondary air injection pipe (1) from the secondary air injection pump (2). Refer to Plastic Collar Quick Connect Fitting Service .
