Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

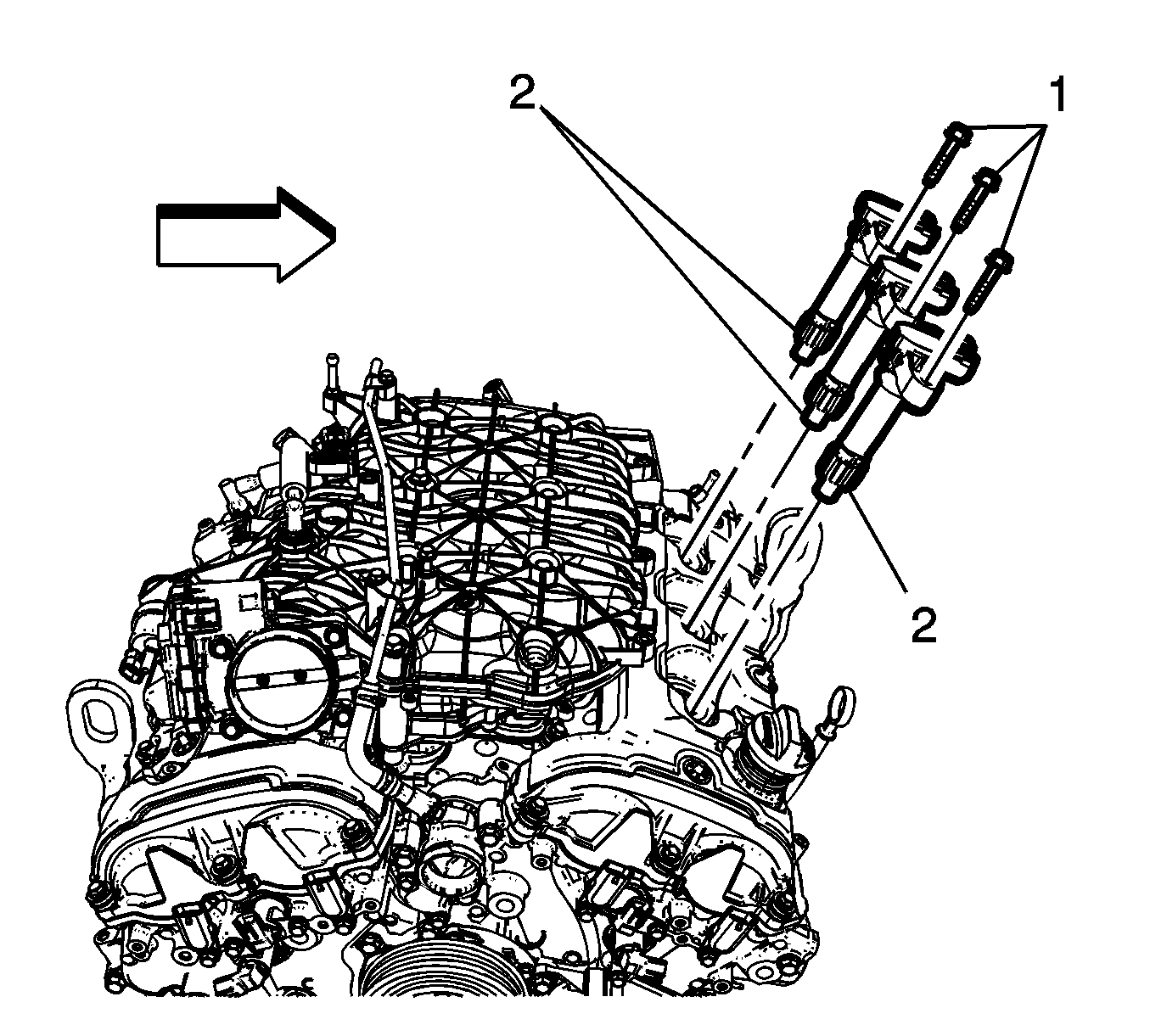

Install the ignition coil(s) (2).

CAUTION:

Refer to Fastener Caution .

Install the ignition coil bolt(s) (1).
Tighten

Tighten the bolt(s) to 10 N.m (89 lb in).
Courtesy of GENERAL MOTORS COMPANY

Connect the engine wiring harness electrical connector(s) (5) to the ignition coil(s) (4).
Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX) .
