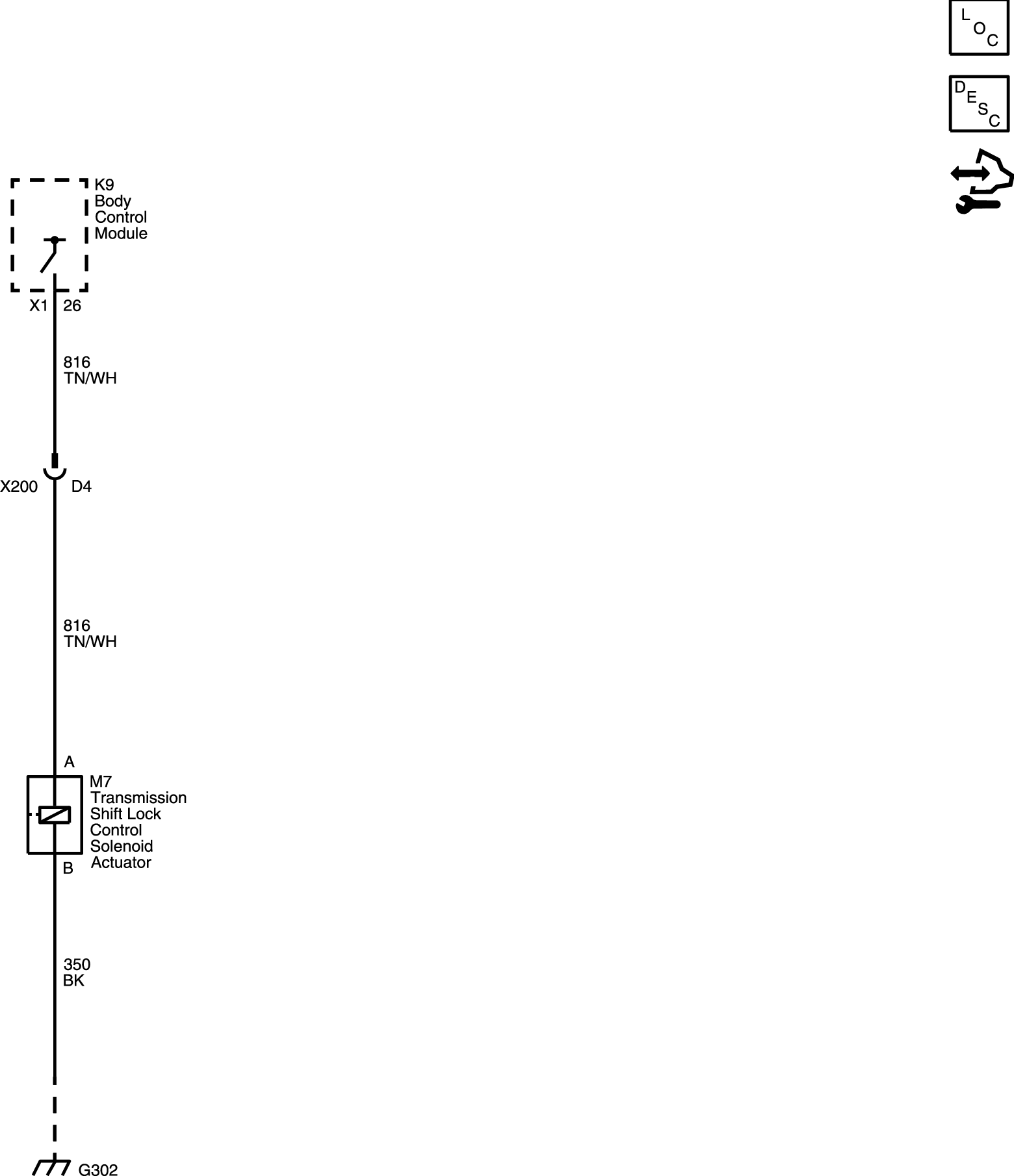

Home >> Chevrolet >> 2018 >> Express 3500 Base, Van Cargo Extended, 6.0L Eng VIN G >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> Shift Lock Control
