Removal Procedure

  1. Emission Reduction Fluid Tank - Remove - Emission Reduction Fluid Tank Replacement (Short Wheel Base) Emission Reduction Fluid Tank Replacement (Long Wheel Base)

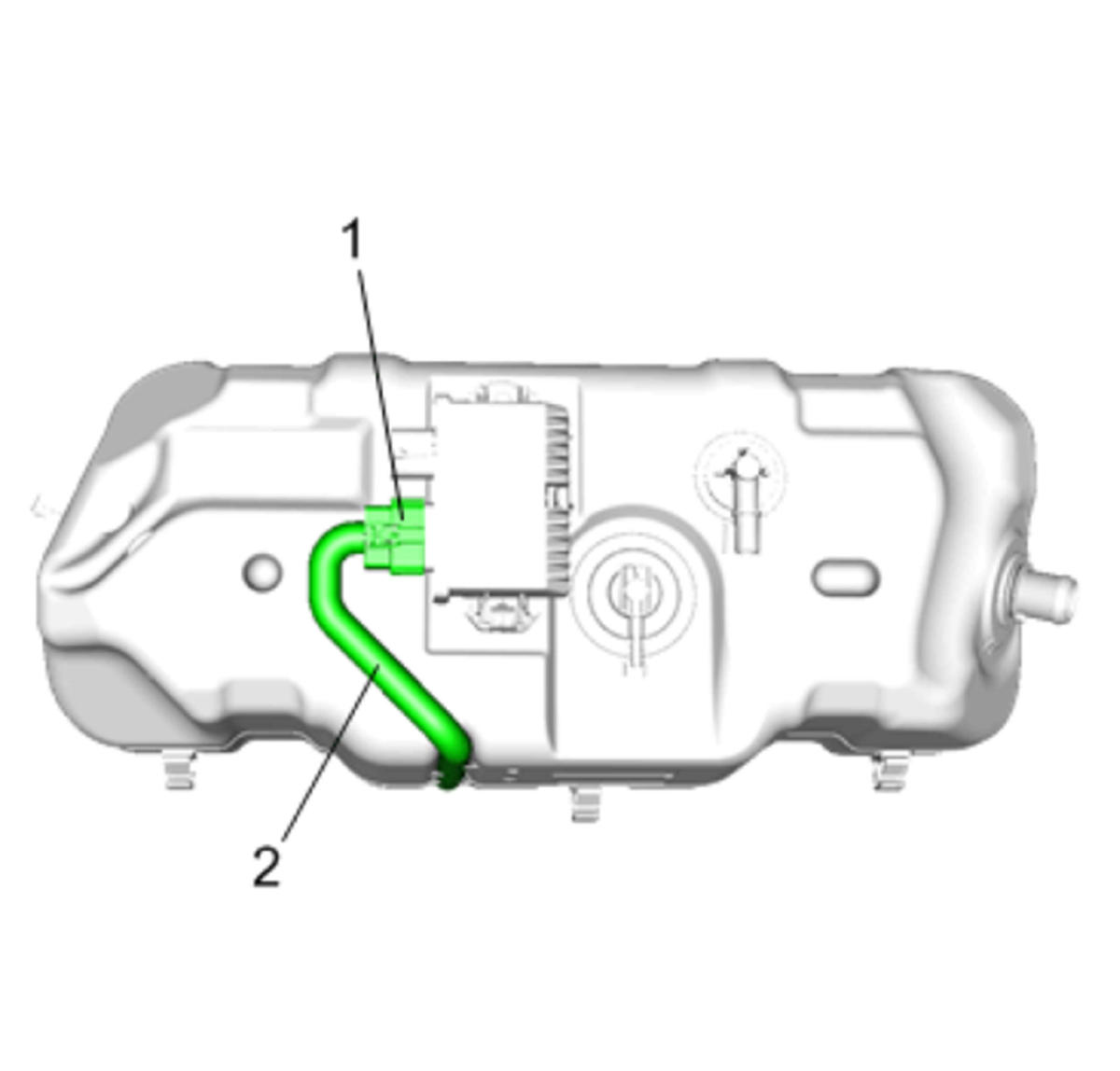

  2. GM4603811Courtesy of GENERAL MOTORS COMPANY

    Emission Reduction Fluid Pump Module Wiring Harness Connector (1) - Disconnect

  3. Emission Reduction Fluid Pump Module Wiring Harness (2) - Remove

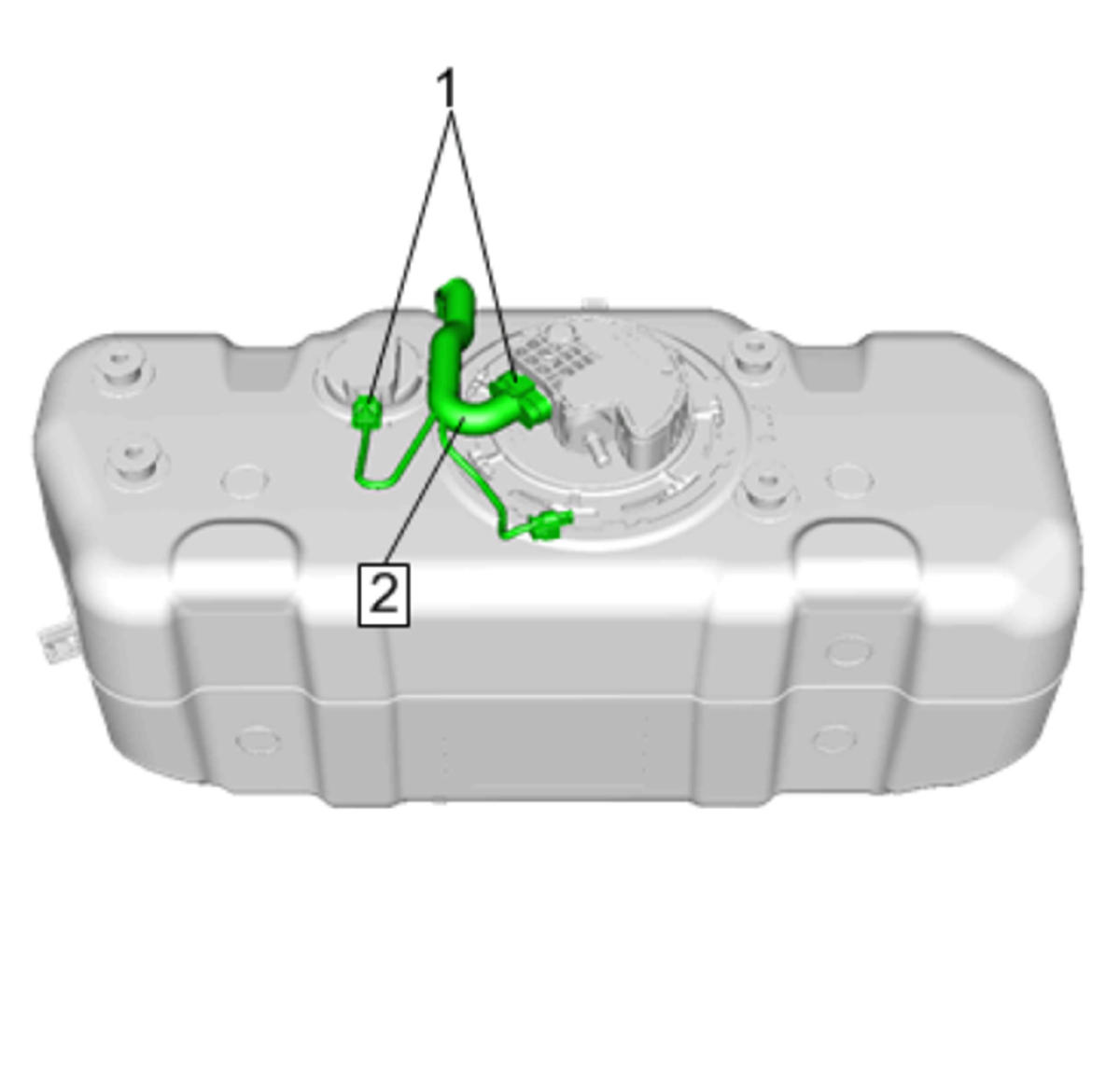

  4. GM4603817Courtesy of GENERAL MOTORS COMPANY

    Emission Reduction Fluid Pump Module Wiring Harness Connector (1) - Disconnect [2x]

  5. Emission Reduction Fluid Pump Module Wiring Harness (2) - Remove
