Installation Procedure

  1. Install Accessory AC and DC Power Control Module (2).
  2. Connect the electrical connector.
  3. Install Accessory AC and DC Power Control Module Bolt (1) and tighten [3x] 2.5 N.m (22 lb in)
    CAUTION: Fastener Caution

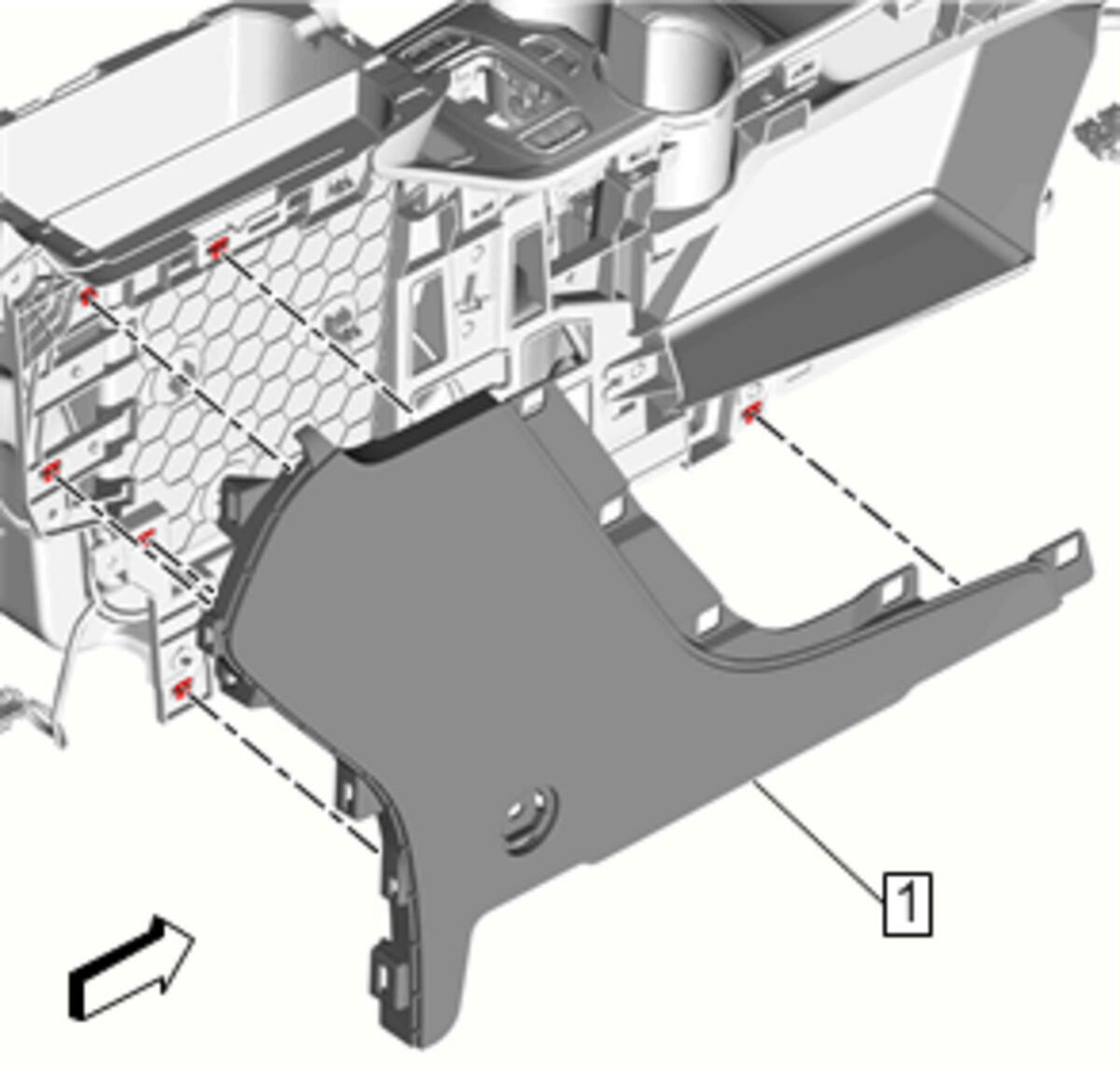

    4. Fig 1: Front Floor Console Rear Trim Panel
    GM4743953Courtesy of GENERAL MOTORS COMPANY
  4. Install Front Floor Console Rear Trim Panel - Right Side (1).

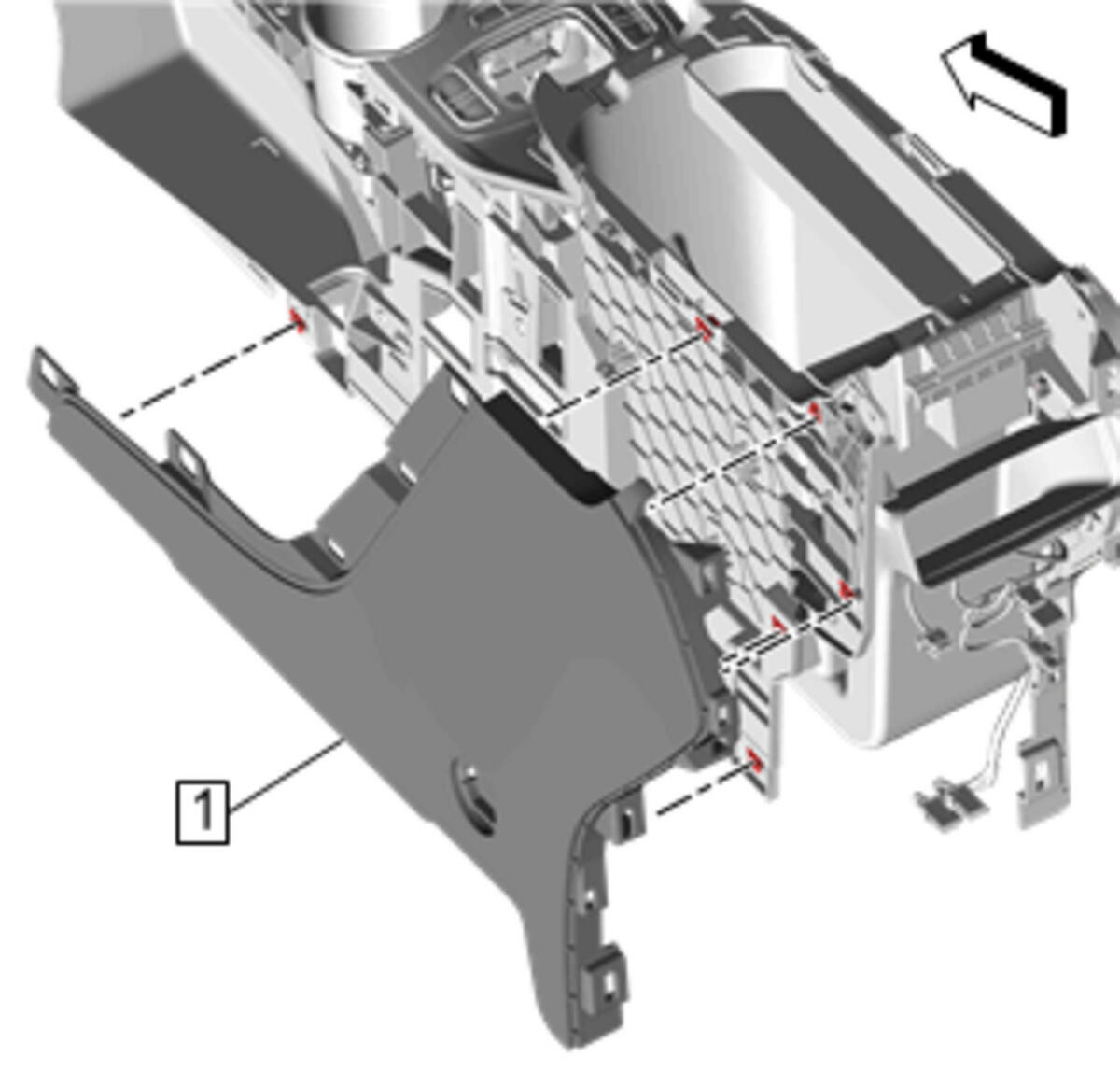

    5. Fig 2: Front Floor Console Rear Trim Panel
    GM4743952Courtesy of GENERAL MOTORS COMPANY
  5. Install Front Floor Console Rear Trim Panel - Left Side (1).

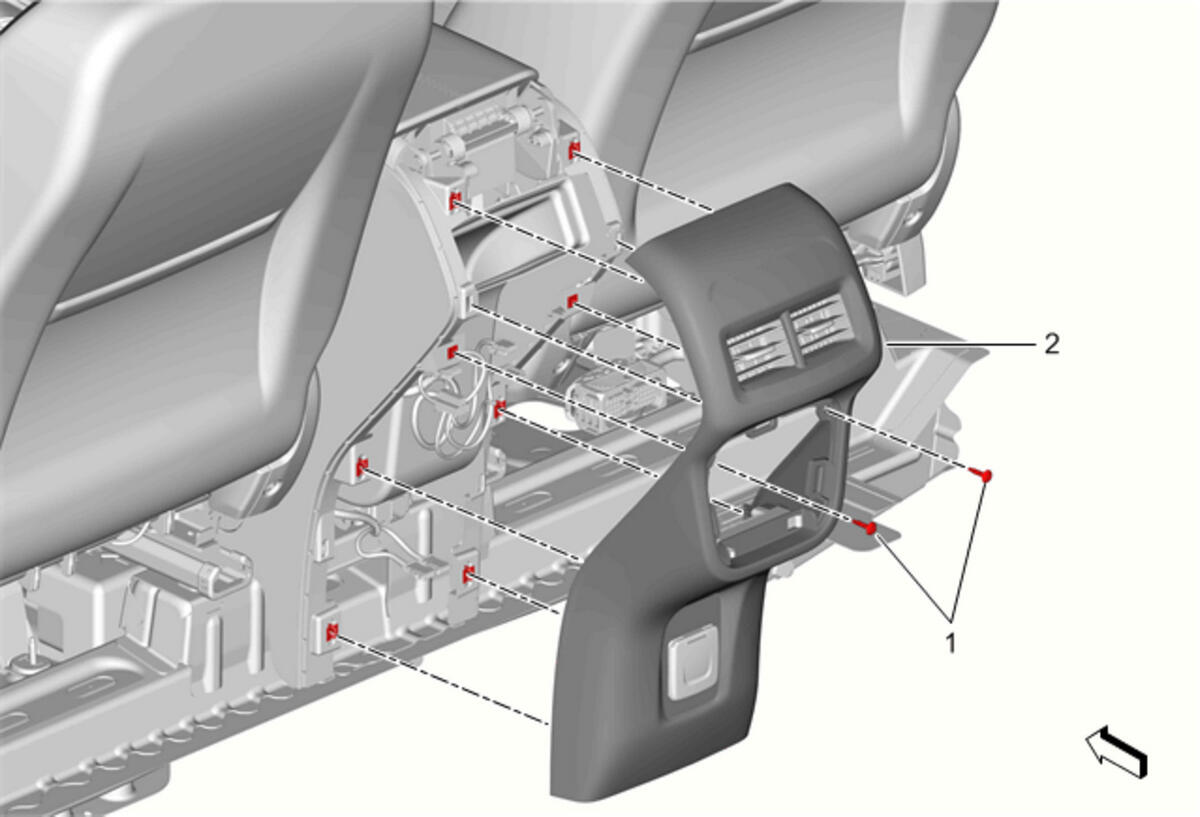

    6. Fig 3: Front Floor Console Rear Trim Panel
    GM4570315Courtesy of GENERAL MOTORS COMPANY
  6. Install Front Floor Console Rear Trim Panel (2)Front Floor Console Rear Trim Panel Replacement (Terrain)

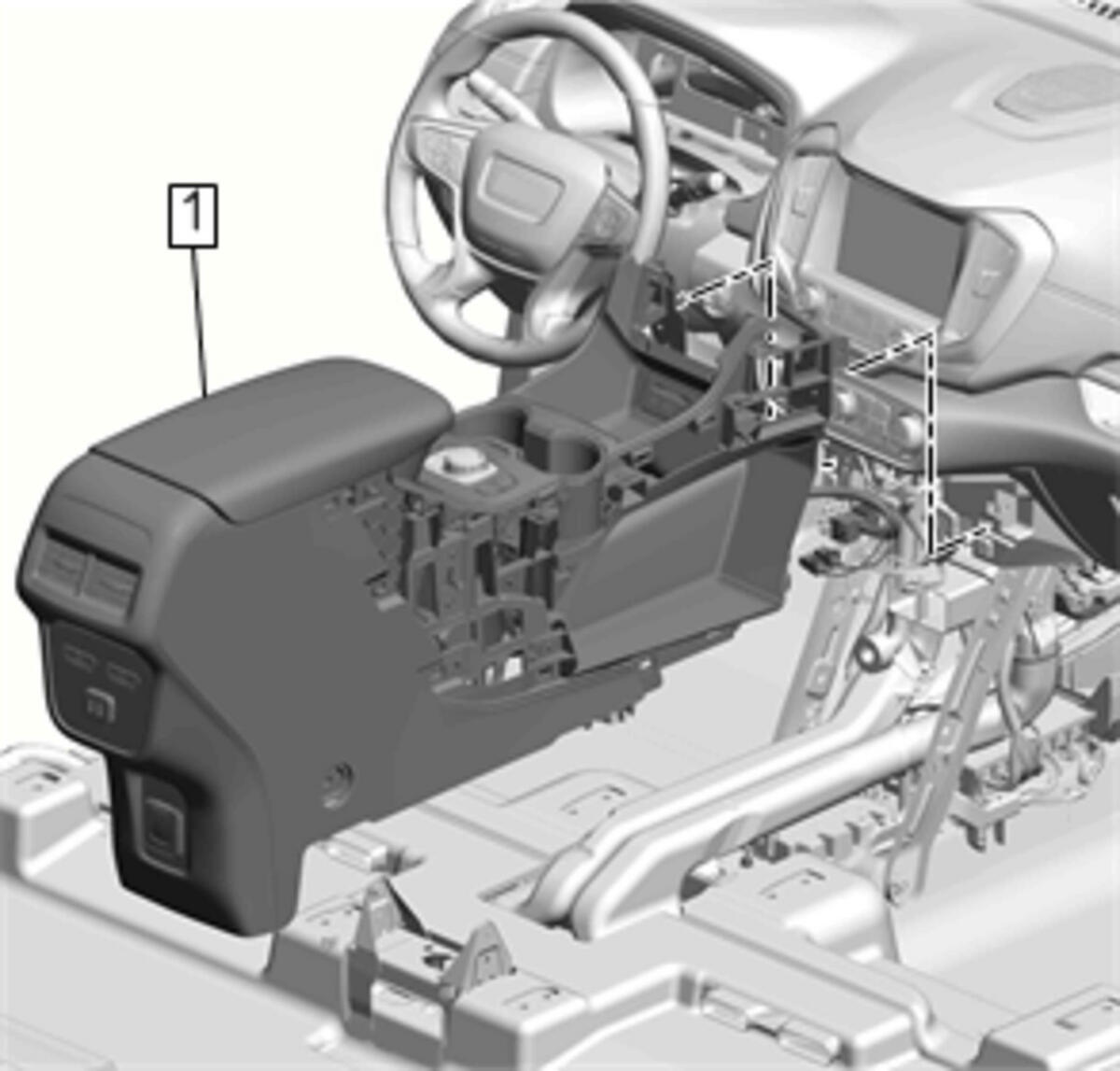

    7. Fig 4: Front Floor Console
    GM4741732Courtesy of GENERAL MOTORS COMPANY
  7. Install Front Floor Console (1) - Front Floor Console Replacement (Terrain)
