Turbocharger Wastegate Actuator Replacement

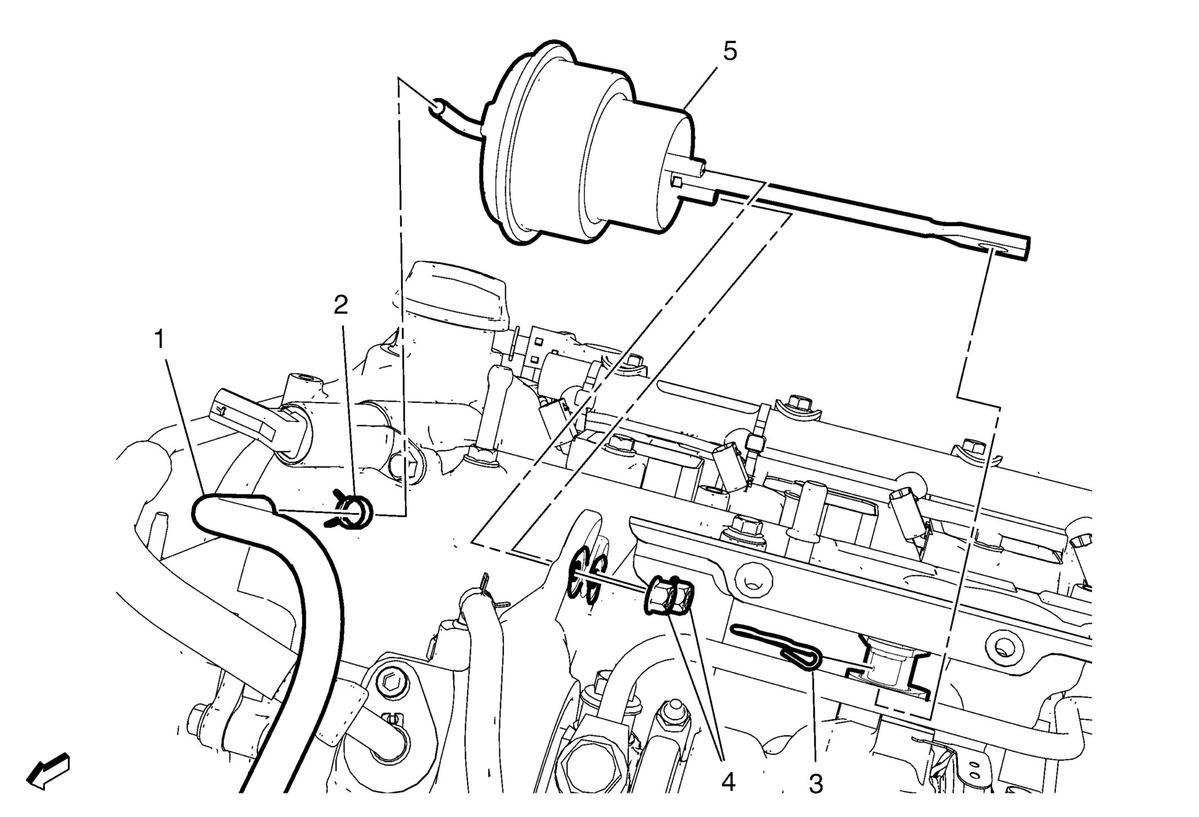

| Callout | Component Name |
|---|---|
| Preliminary Procedure Turbocharger Heat Shield Replacement |
|
| 1 | Turbocharger Wastegate Regulator Solenoid Valve Hose |
| 2 | Turbocharger Wastegate Regulator Solenoid Valve HoseClamp |
| 3 | Turbocharger Wastegate Actuator Arm Retainer |
| 4 | Turbocharger Wastegate ActuatorNut
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 5 | Turbocharger Wastegate Actuator |
