Installation Procedure

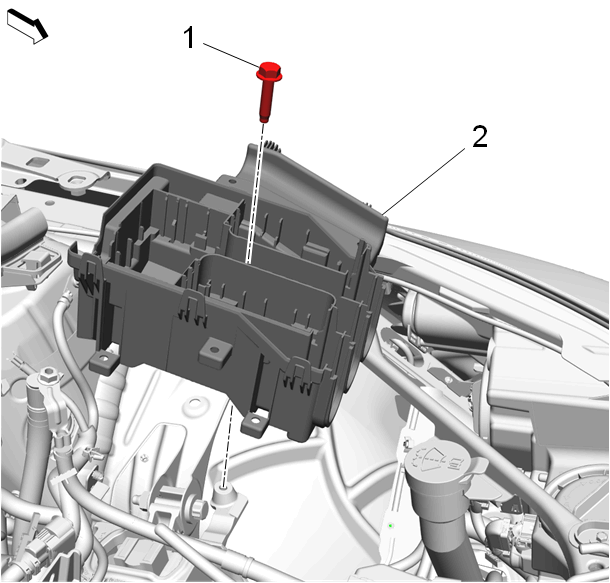

  1. GM4675899
    CAUTION:

    Fastener Caution

    Front Compartment Fuse Block Housing (2) - Install

  2. Front Compartment Fuse Block Housing Bolt (1) - Install and tighten 22 N.m (16 lb ft)

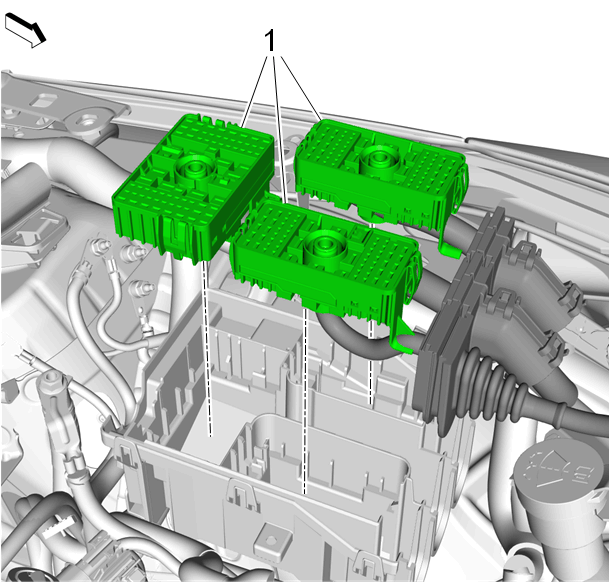

  3. GM4675897

    Install the electrical connectors to the front compartment fuse block housing. (1)

  4. Front Compartment Fuse Block Replacement  - Install
  5. Battery Negative Cable Disconnection and Connection - Connect
