Rear Side Door Window Regulator Replacement

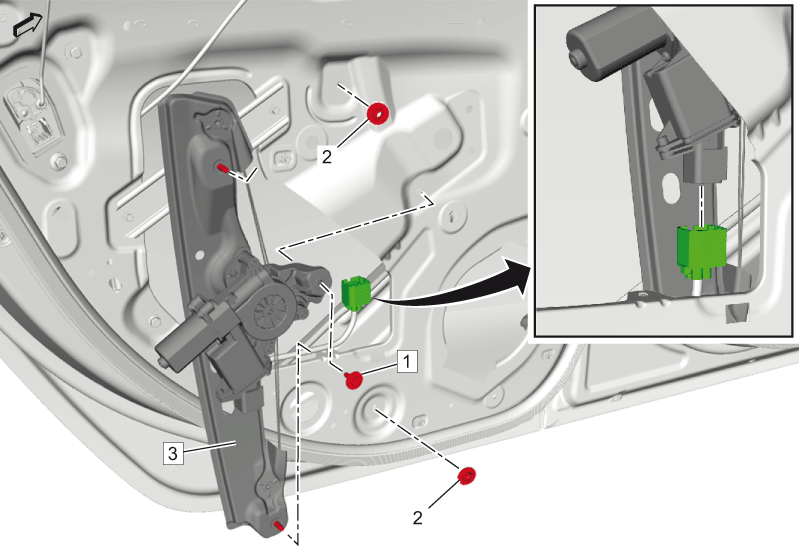

GM4422097
Callout Component Name
Preliminary Procedure
Rear Side Door Window Replacement
1 Rear Side Door Window Regulator Bolt
CAUTION:

Fastener Caution


Tighten
11 N.m (97 lb in)
2 Rear Side Door Window Regulator Nut [2x]
Tighten
11 N.m (97 lb in)
3 Rear Side Door Window Regulator

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
