Radio Antenna Cable Replacement

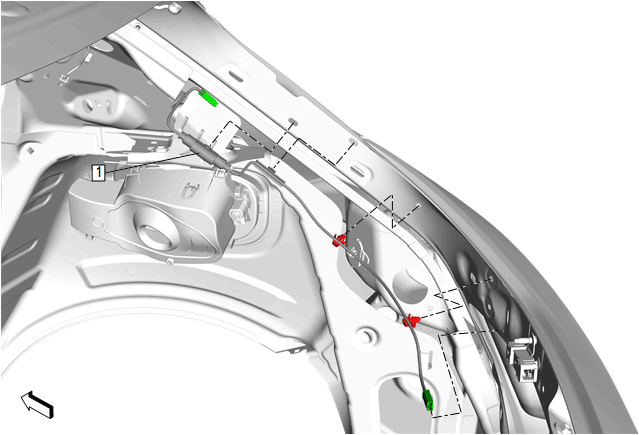

GM5121090
Callout Component Name
Preliminary Procedure
Liftgate Upper Side Trim Finish Panel Replacement
1 Radio Antenna Coil - High Side

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retainers.
  3. Unlock the retaining tabs.
