Rearview Driver Information Camera Replacement (Hatchback)

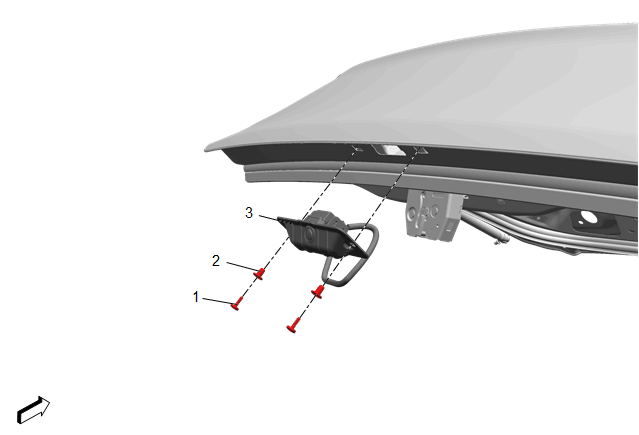

| Callout | Component Name |
|---|---|
| 1 | Rearview Driver Information Camera Screw [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5N.m (22 lb in) |
| 2 | Rearview Driver Information Camera Retainer [2x] |
| 3 | Rearview Driver Information Camera Procedure Disconnect the electrical connector.
NOTE:
The coax cable repair kit is only to be used for antenna coax cable repairs. It should not be used for any camera coax cable repairs as the repair kit connector ends are not sealed, and will fail due to corrosion. |
