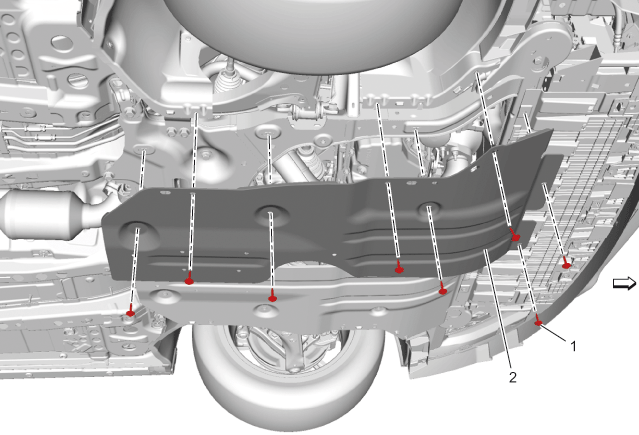

Front Compartment Splash Shield Replacement
Callout
Component Name
1
Front Compartment Splash Shield Bolt [8x]
CAUTION:
Fastener Caution
Tighten
2.5 N.m (22 lb in)
2
Front Compartment Splash Shield
