Radio Replacement (Notchback - IO5 and IO6)

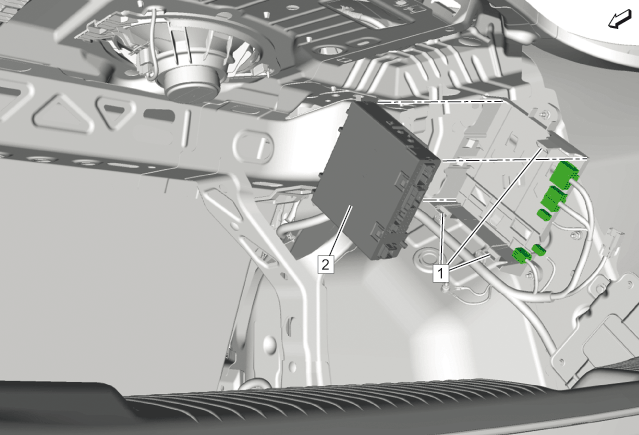

GM4280469
Callout Component Name

Preliminary Procedures

  1. Battery Negative Cable Disconnection and Connection
  2. Rear Compartment Side Trim Replacement - Right Side (Notchback)
1 Radio Bracket Retainer [3x]
Procedure
Push to unlock
2 Radio

Procedure

  1. Disconnect the electrical connector.
  2. Control Module References - Programming and Setup
