Home
>>
Chevrolet
>>
2018
>>
Cruze L
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Collision/Avoidance
>>
Image Display Camera System
>>
Schematic and Wiring Diagrams
>>
Image Display Camera Wiring Schematics
>>

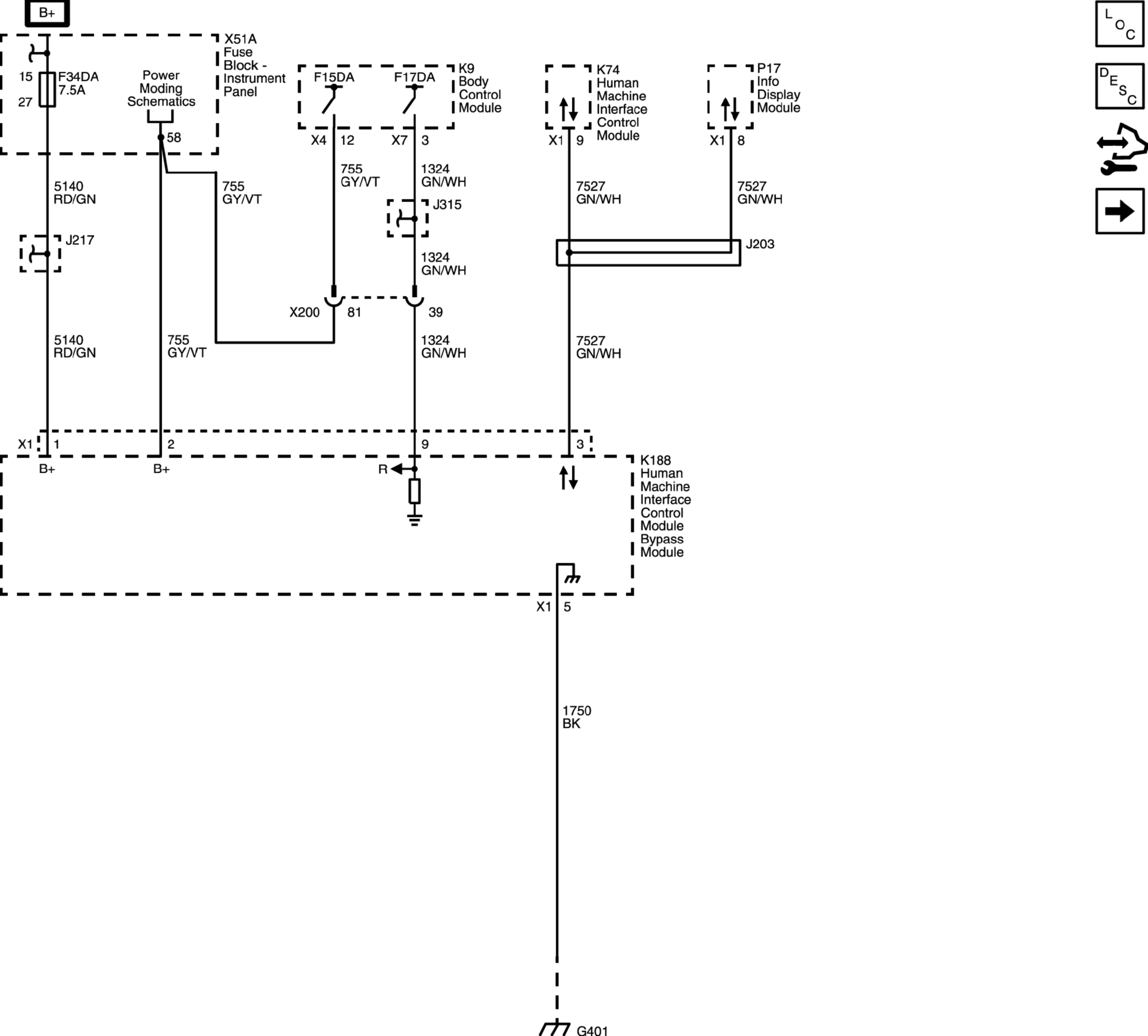

Power, Ground, Serial Data, Human Machine Interface Control Module Bypass Module
Power, Ground, Serial Data, Human Machine Interface Control Module Bypass Module
