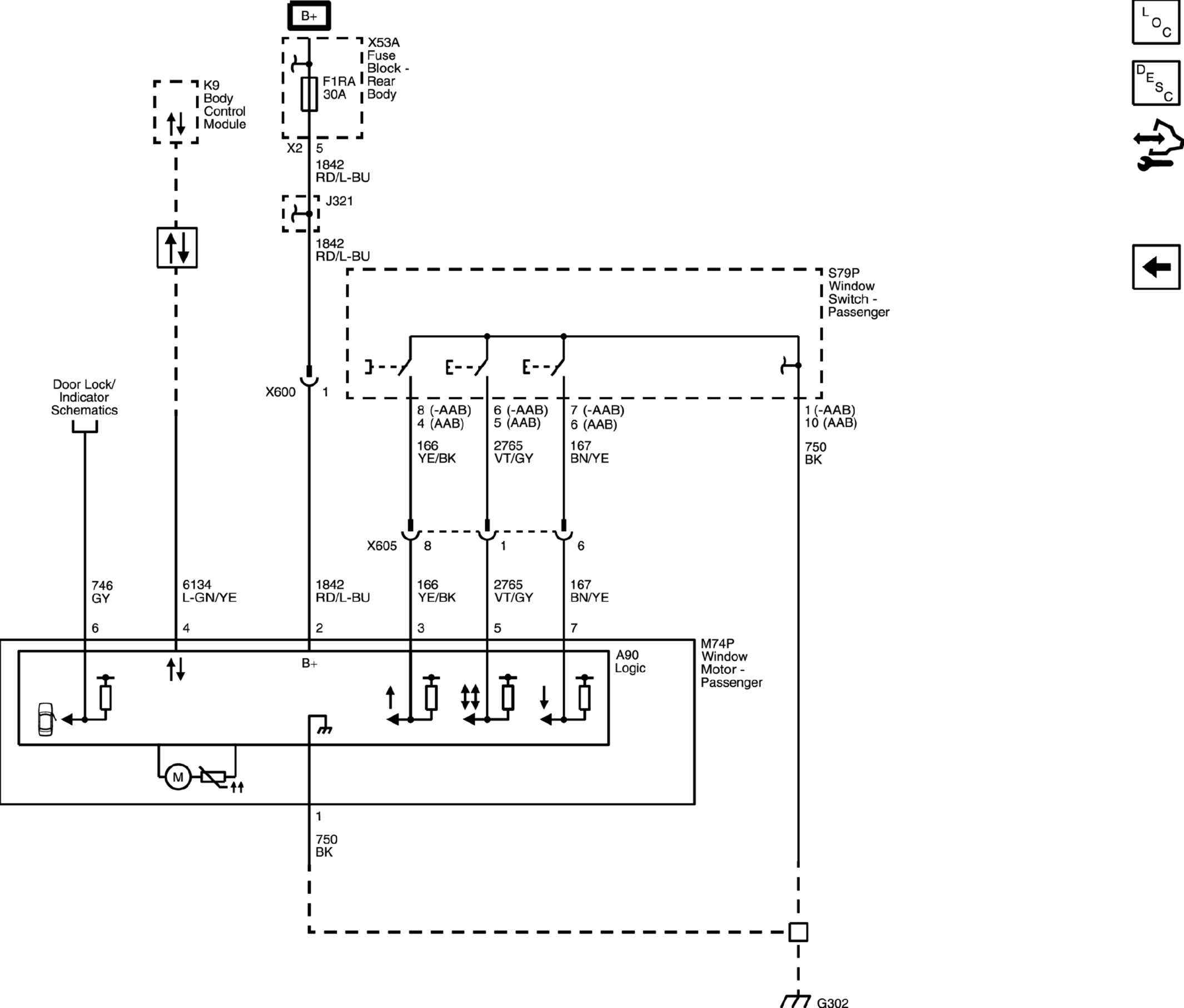

Home >> Chevrolet >> 2018 >> Corvette Z51, 2D Convertible, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Wiring Schematics And Routing Diagrams >> Moveable Window Schematics >> Passenger
