Radio Antenna Module Replacement

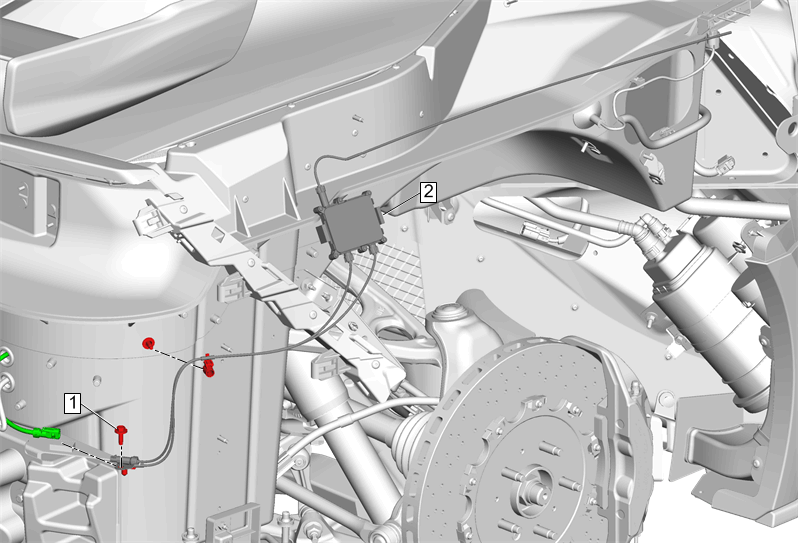

GM4898457
Callout Component Name
Preliminary Procedure
Quarter Outer Panel Replacement - Right Side (Coupe)Quarter Outer Panel Replacement - Right Side (Convertible)
1 Radio Antenna Amplifier Bolt
CAUTION:

Fastener Caution


Tighten
14N.m (124 lb in)
2 Radio Antenna Module

Procedure

  1. Disconnect the electrical connector.
  2. Release the retainers.
