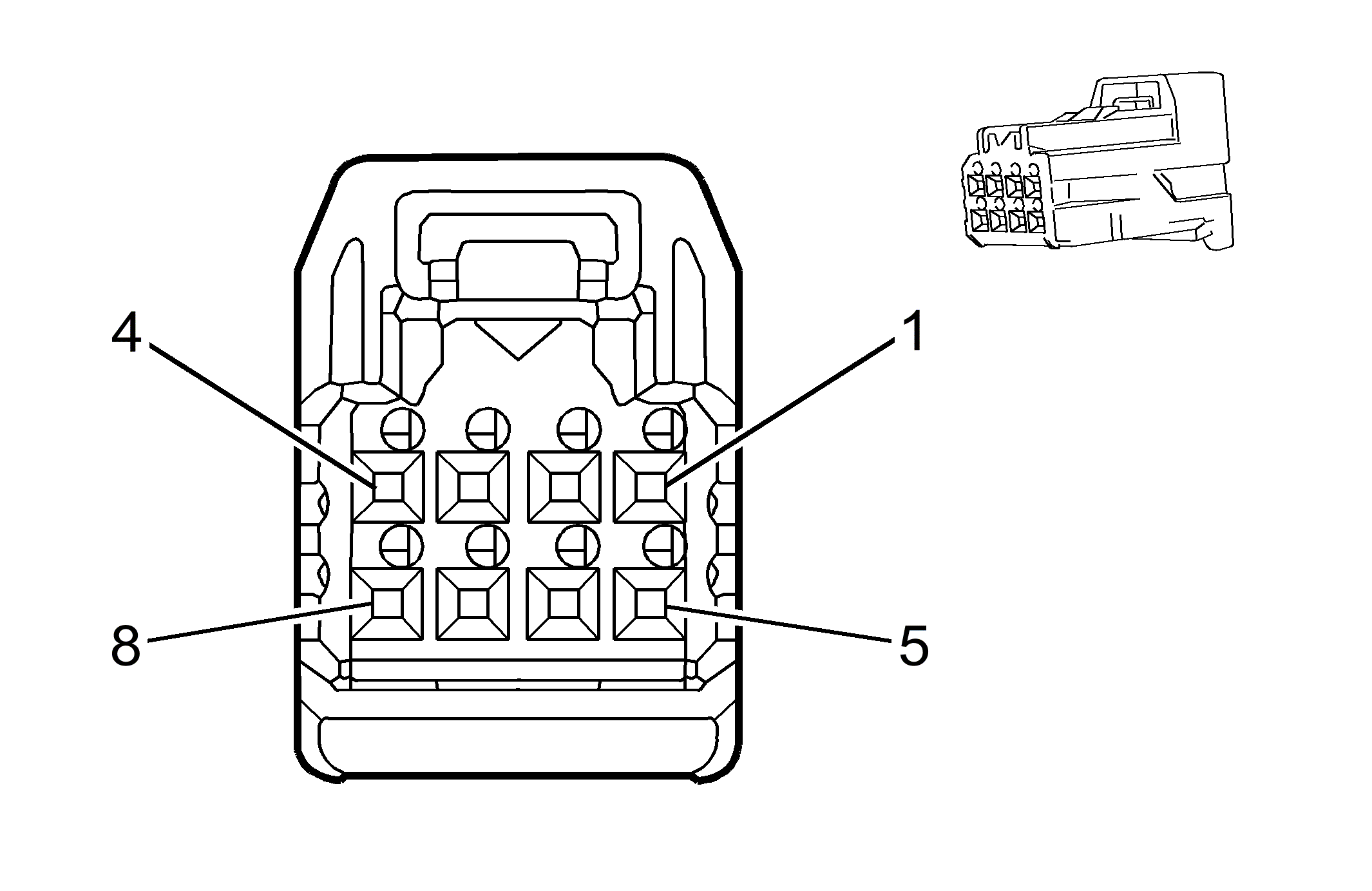

K82 Mobile Telephone Control Module X2

Connector Part Information Harness Type: Instrument Panel OEM Connector: TH08FW-NH Service Connector: Service by Harness - See Parts Catalog Description: 8-Way F 025 Series (NA)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Available	Not Available	Not Available	Service by Harness - See Parts Catalog	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	L-BU	RT10	CAN Bus Medium Serial Data (+)	I	-
2	-	-	-	Not Occupied	-	-
3	-	L-BU	RT08	CAN Bus Medium Serial Data (+)	I	-
4	-	L-GN	RT09	CAN Bus Medium Serial Data (-)	I	-
5	-	L-GN	RT11	CAN Bus Medium Serial Data (-)	I	-
6	-	-	-	Not Occupied	-	-
7	-	L-BU	RT08	CAN Bus Medium Serial Data (+)	I	-
8	-	L-GN	RT09	CAN Bus Medium Serial Data (-)	I	-
