K43 Power Steering Control Module X3
|
|

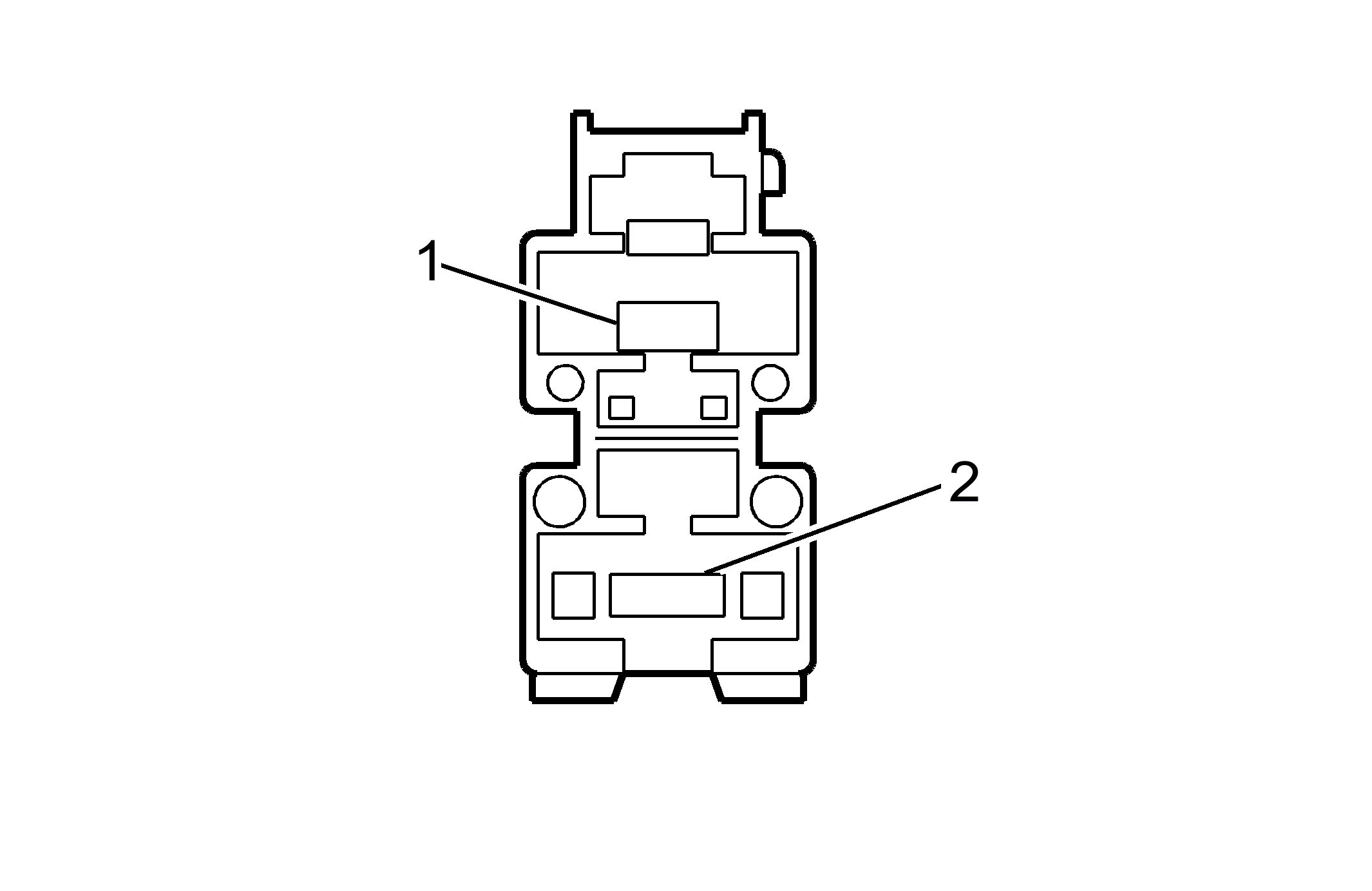

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: L02FB-MC
- Service Connector: Service by Harness - See Parts Catalog
- Description: 2-Way F 375 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Service by Harness - See Parts Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
RD |
PS01 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
BK |
PSE1 |
Ground |
I |
- |
