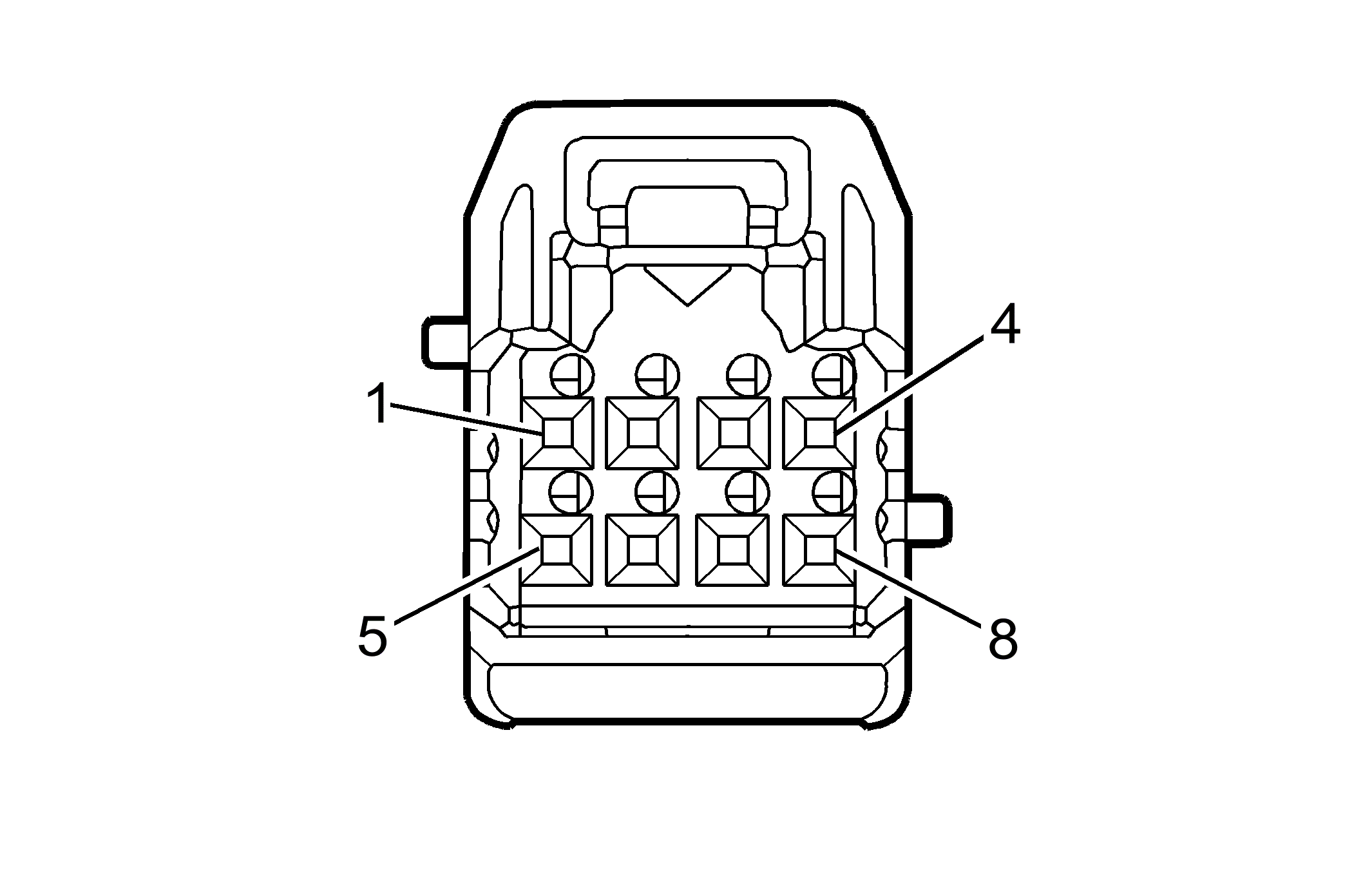

K43 Power Steering Control Module X1
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: TH08FB-NH
- Service Connector: Service by Harness - See Parts Catalog
- Description: 8-Way F 025 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Service by Harness - See Parts Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
PK |
PS11 |
CAN Bus High Serial Data (-) |
I |
- |
| 2 |
- |
D-BU |
PS10 |
CAN Bus High Serial Data (+) |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
- |
WH |
PS02 |
Run/Crank Ignition Voltage |
I |
- |
| 5-8 |
- |
- |
- |
Not Occupied |
- |
- |
