B-Pillar Components
B-Pillar Components

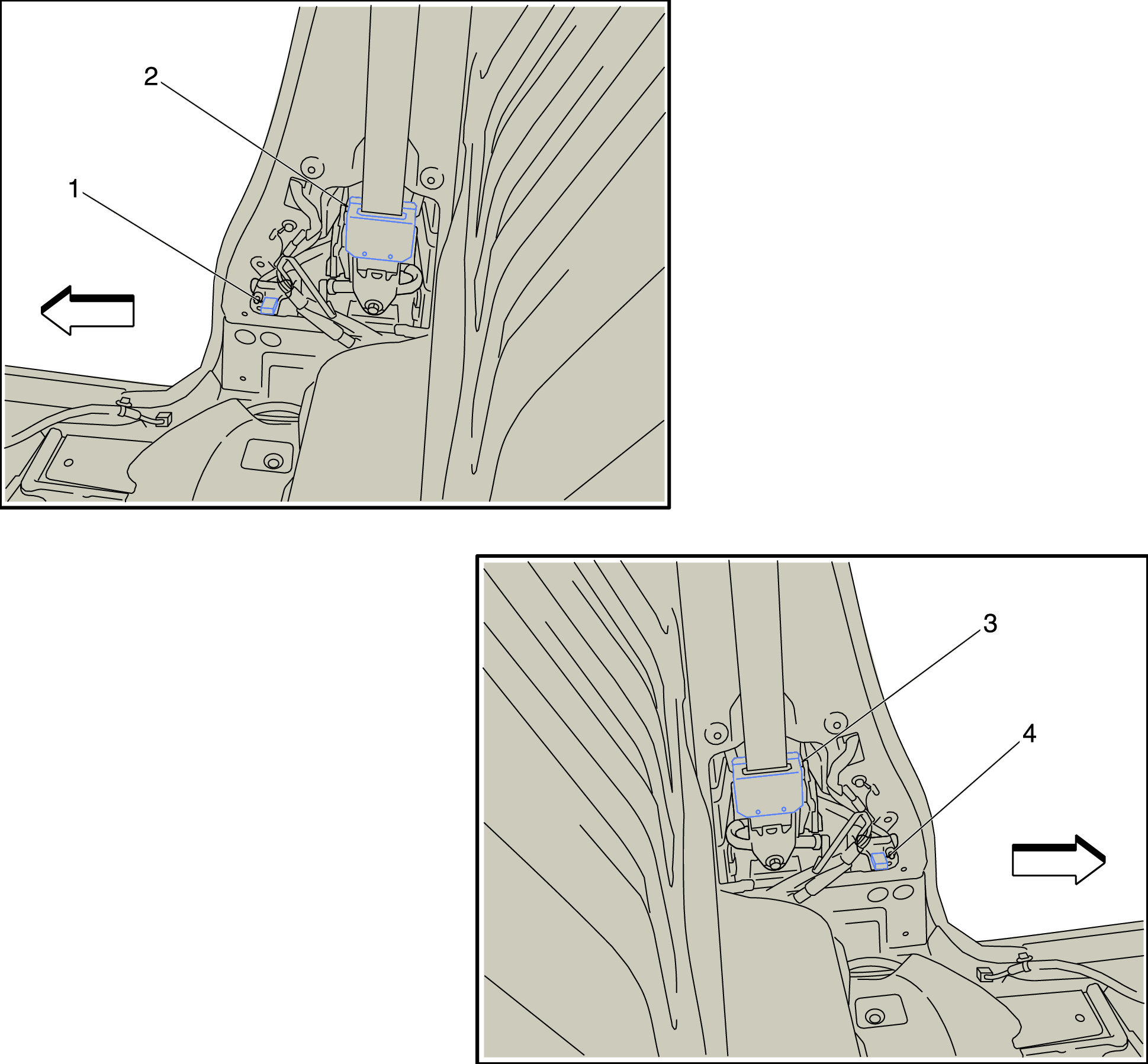

| Items | Callout |
|---|---|
| B63RM Side Impact Sensor - Right Middle Connector View | (1) |
| F112P Seat Belt Retractor Pretensioner - Passenger Connector View | (2) |
| F112D Seat Belt Retractor Pretensioner - Driver Connector View | (3) |
| B63LM Side Impact Sensor - Left Middle Connector View | (4) |
