Installation Procedure

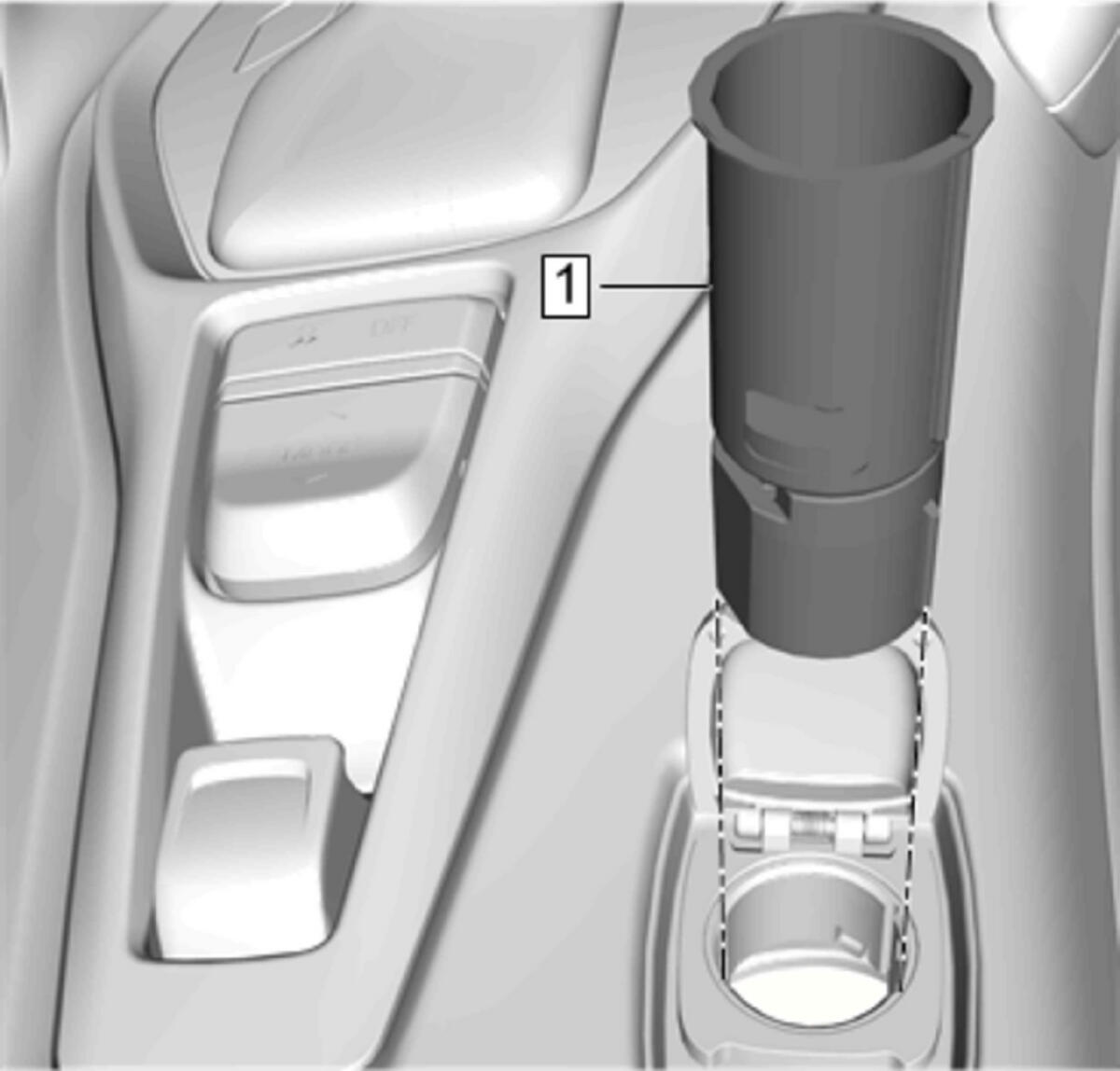

  1. GM4193816Courtesy of GENERAL MOTORS COMPANY

    Align the accessory power receptacle (1) to the slots in the opening.

  2. Install the receptacle (1) by pressing into place until fully seated.
  3. Front Floor Console Upper Panel - Install - Front Floor Console Upper Panel Replacement
  4. Accessory Power Receptacle Fuse - Install
