Hybrid Control Electronic Component Views
Hybrid Control Electronic Component Views

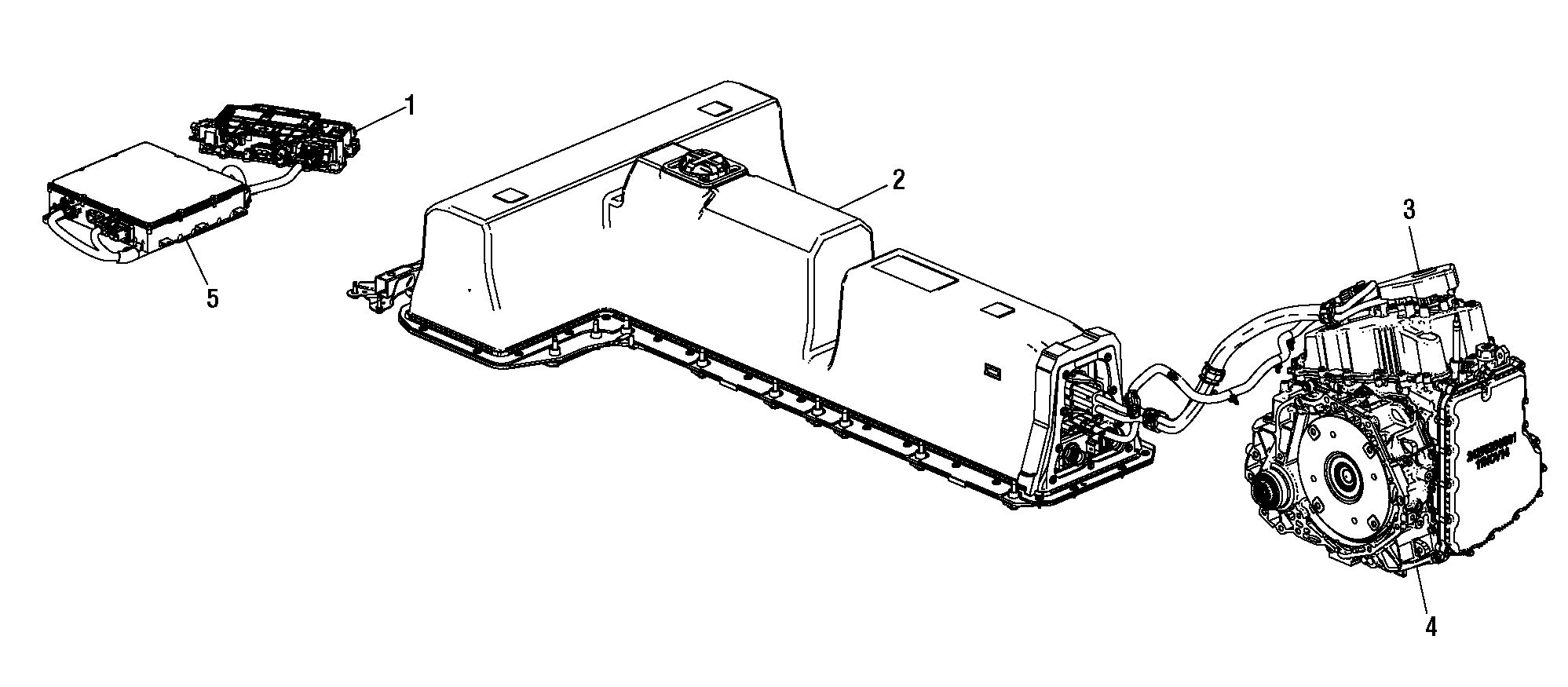

Fig 1: Hybrid Control Electronic Component Views
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
K1 14 V Power Module
2
High Voltage Battery
3
T6 Power Inverter Module
4
T12 Automatic Transmission Assembly
5
T18 Battery Charger
