Drive Motor Battery System Description: Notes

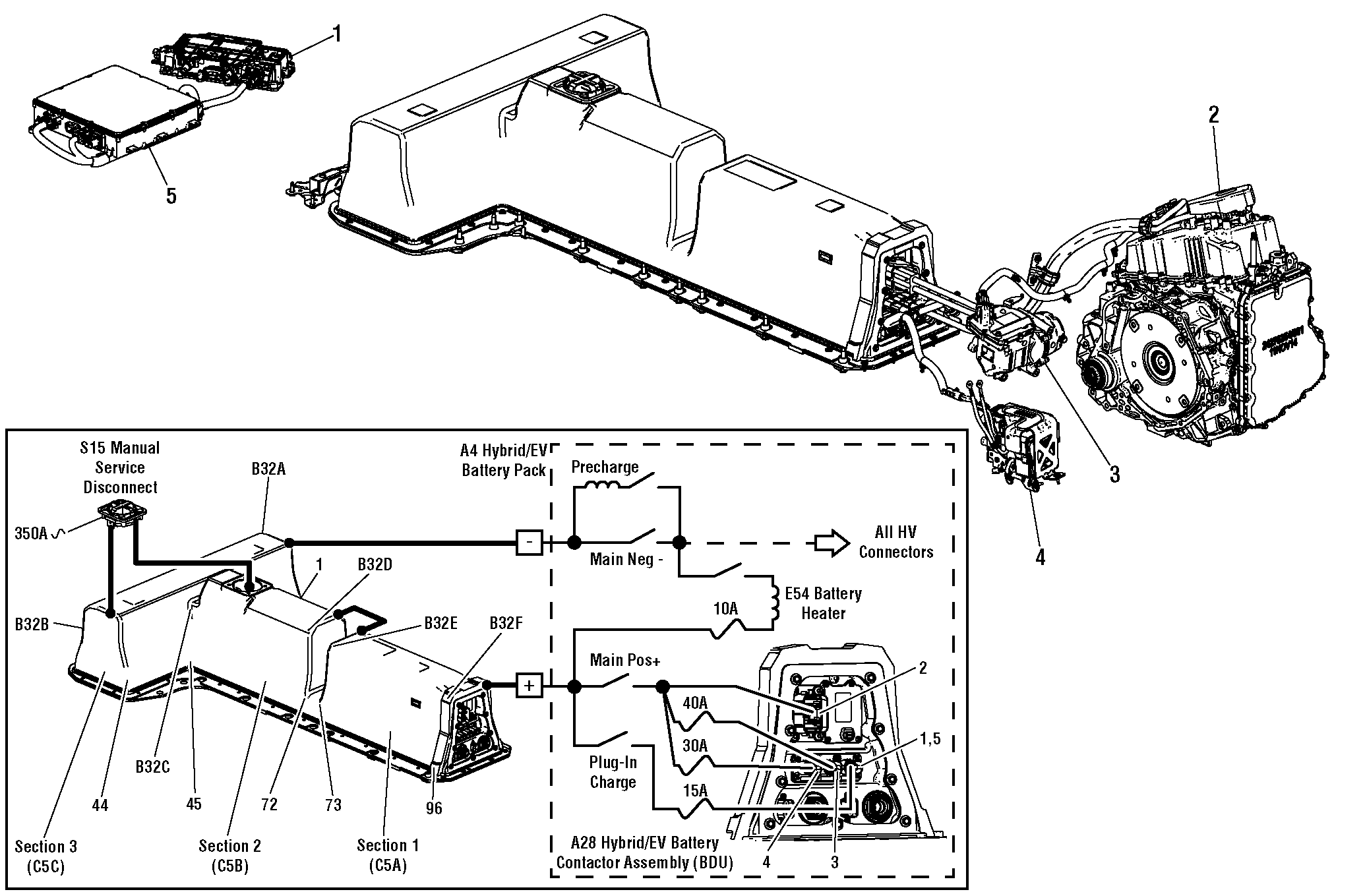

Fig 1: Drive Motor Battery System
GM4167983Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 K1 14V Power Module
2 T6 Power Inverter Module
3 G1 A/C Compressor
4 K10 Cabin Heater
5 T18 Battery Charger
