Knock Sensor Replacement

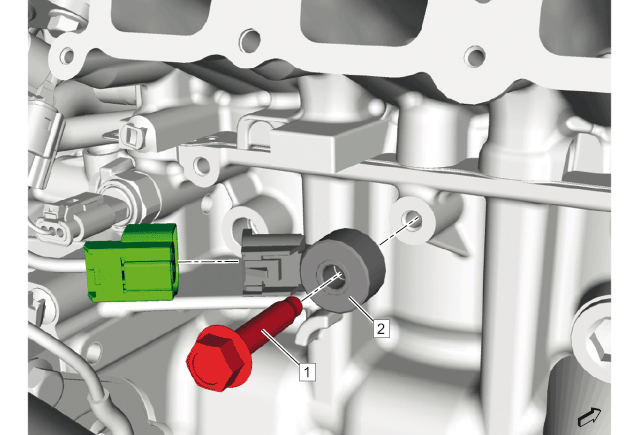

Fig 1: Knock Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Intake Manifold Replacement
1	Knock Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Knock Sensor Procedure Disconnect the electrical connector.
