Engine Controls And Fuel - 1.5L (L3A) - Repair Instructions
>>
Repair Instructions
>>
Fuel Tank Pressure Sensor Replacement
Fuel Tank Pressure Sensor Replacement

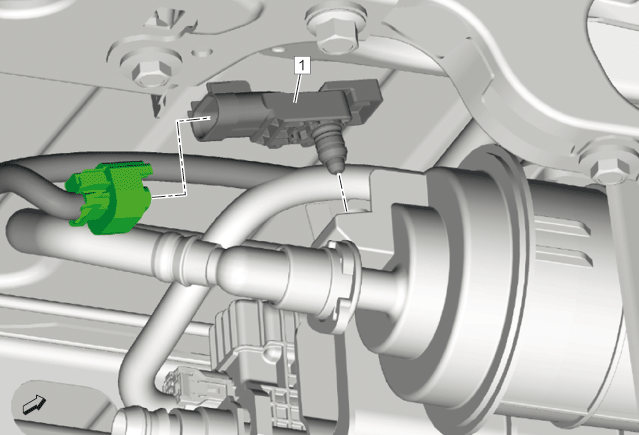

Fig 1: Fuel Tank Pressure Sensor
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Battery Negative Cable Disconnection and Connection
Underbody Rear Air Deflector Replacement
1
Fuel Tank Pressure Sensor
Procedure
Disconnect the electrical connector.
