Front Intake Air Duct Replacement

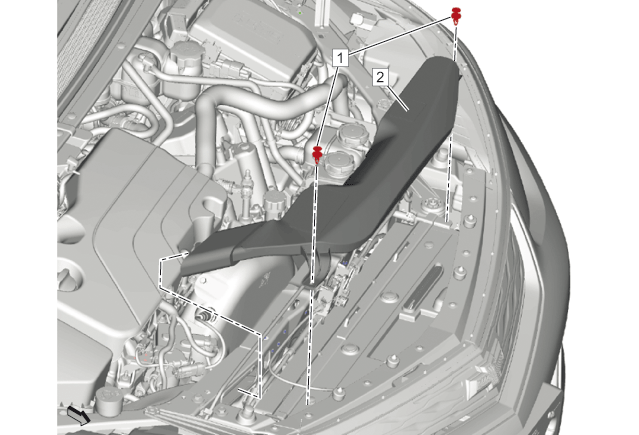

Fig 1: Front Intake Air Duct
GM4091005Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Center Support Replacement
1 Clip (Qty: 2)
2 Front Intake Air Duct
