Engine Controls And Fuel - 1.5L (L3A) - Repair Instructions
>>
Repair Instructions
>>
Camshaft Position Sensor Replacement - Intake
Camshaft Position Sensor Replacement - Intake

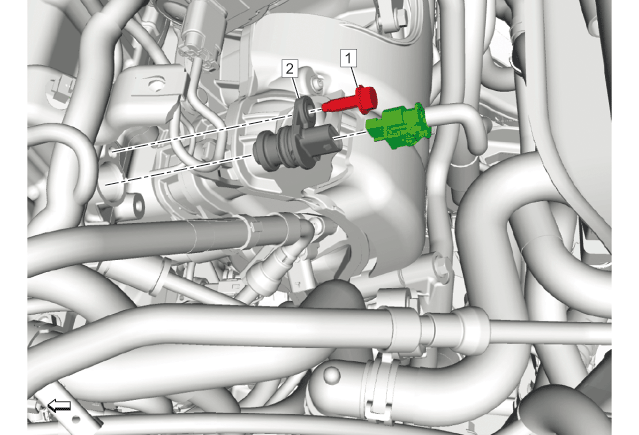

Fig 1: Camshaft Position Sensor - Intake
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Intake Manifold Cover Replacement
Air Cleaner Outlet Duct Replacement
1
Camshaft Position Sensor Bolt
CAUTION:
Fastener Caution
Tighten
10 N.m (89 lb in)
2
Camshaft Position Sensor
Procedure
Disconnect the electrical connector.
