Installation Procedure

    Fig 1: Air Cleaner Outlet Duct, Air Cleaner Assembly And Throttle Body
    GM4091002Courtesy of GENERAL MOTORS COMPANY
  1. Install Air Cleaner Outlet Duct(2)@Throttle Body(1)
  2. Install Air Cleaner Outlet Duct(2)@Air Cleaner Assembly(3)

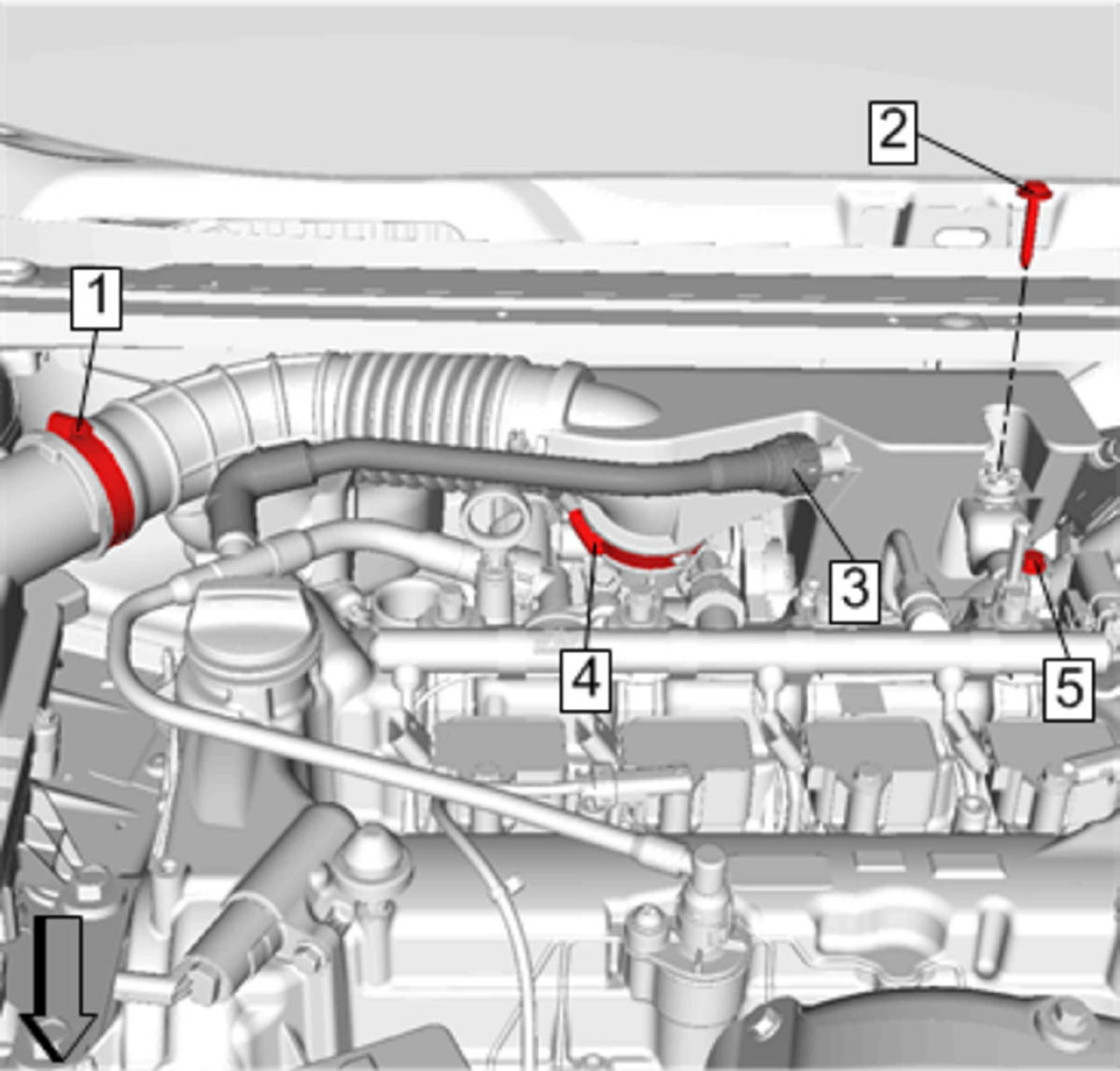

    3. Fig 2: Air Cleaner Outlet Duct Clamp
    GM4860231Courtesy of GENERAL MOTORS COMPANY
  3. Connect Positive Crankcase Ventilation Tube(3) Plastic Collar Quick Connect Fitting Service
    4. CAUTION:

    Fastener Caution

    NOTE:

    Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.

  4. Air Cleaner Outlet Duct Clamp(1, 4) - Tighten 2.5 N.m (22 lb in)
  5. Air Cleaner Outlet Duct Bracket Bolt(5) - Tighten 9 N.m (80 lb in)
  6. Install Air Cleaner Outlet Duct Fastener (2) and tighten 9 N.m (80 lb in)
  7. Install Dash Upper Extension Panel Opening Cover Replacement
  8. Install Intake Manifold Cover Replacement
