Rear Side Door Window Switch Replacement

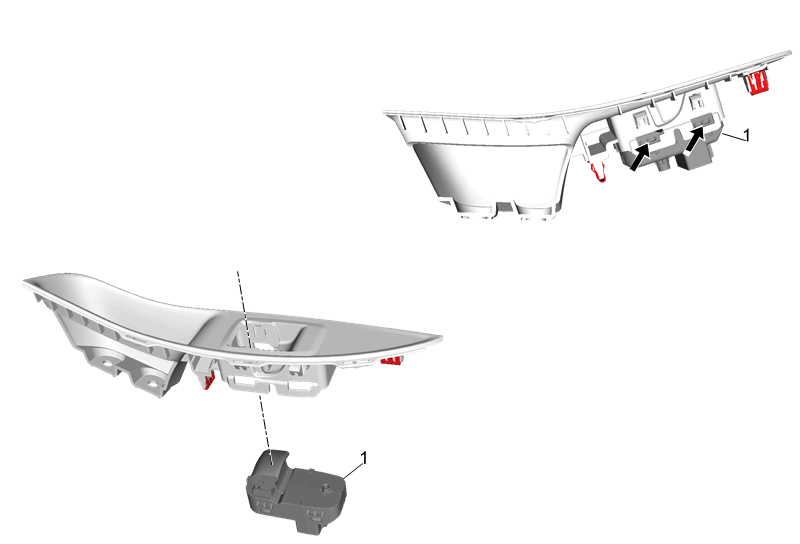

Fig 1: Rear Side Door Window Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Side Door Armrest Switch Mount Plate. Refer to Rear Side Door Armrest Switch Mount Plate Replacement
1	Rear Side Door Window Switch Procedure Release the tabs and remove the switch. Refer to Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Remove Rear Side Door Armrest Switch Mount Plate. Refer to Rear Side Door Armrest Switch Mount Plate Replacement

Rear Side Door Window Switch

Procedure

Release the tabs and remove the switch.
Refer to Control Module References for programming and setup information, if required.
