Front Side Door Window Channel Retainer Replacement

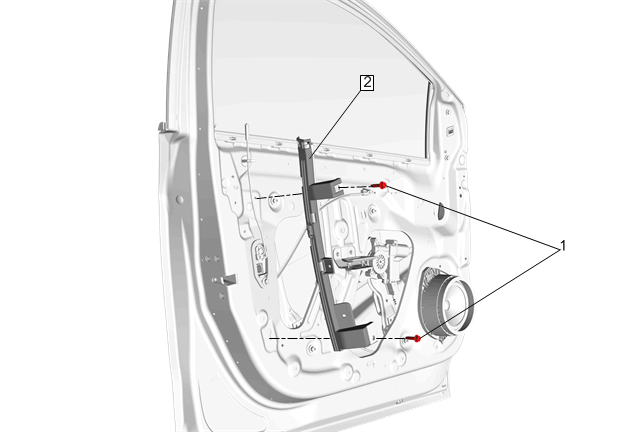

Fig 1: Front Side Door Window Channel Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Position the window to the full up position. Remove Front Side Door Armrest Bracket. Refer to Front Side Door Armrest Bracket Replacement Remove the water deflector. Unclip and reposition the wring harness attached to the window channel retainer.
1	Front Side Door Window Channel Retainer Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove the bolts from the front side door window channel retainer. Tighten 11 N.m (97 lb in)
2	Front Side Door Window Channel Retainer NOTE: Inspect the window for proper operation before installing the water deflector.

Callout

Component Name

Preliminary Procedures

Position the window to the full up position.
Remove Front Side Door Armrest Bracket. Refer to Front Side Door Armrest Bracket Replacement
Remove the water deflector.
Unclip and reposition the wring harness attached to the window channel retainer.

Front Side Door Window Channel Retainer Bolt (Qty: 2)

CAUTION:

Procedure
Remove the bolts from the front side door window channel retainer.
Tighten
11 N.m (97 lb in)

Front Side Door Window Channel Retainer

NOTE:

Inspect the window for proper operation before installing the water deflector.
