Outside Rearview Mirror Replacement

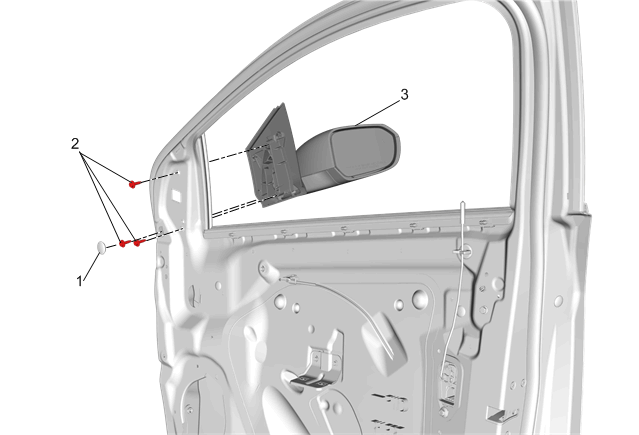

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove Front Side Door Window Garnish Molding. Refer to Front Side Door Window Garnish Molding Replacement Remove Front Side Door Window Upper Reveal Molding. Refer to Front Side Door Window Upper Reveal Molding Replacement
1	Plug Procedure Remove the plug that covers the lower front mirror bolt.
2	Outside Rearview Mirror Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 10 N.m (89 lb in)
3	Outside Rearview Mirror Procedure Lift bottom of mirror and pull mirror out from under the weatherstrip. NOTE: Inspect the outside rearview mirror for proper operation before installing the front side door window garnish molding.
