Inside Rearview Mirror Replacement

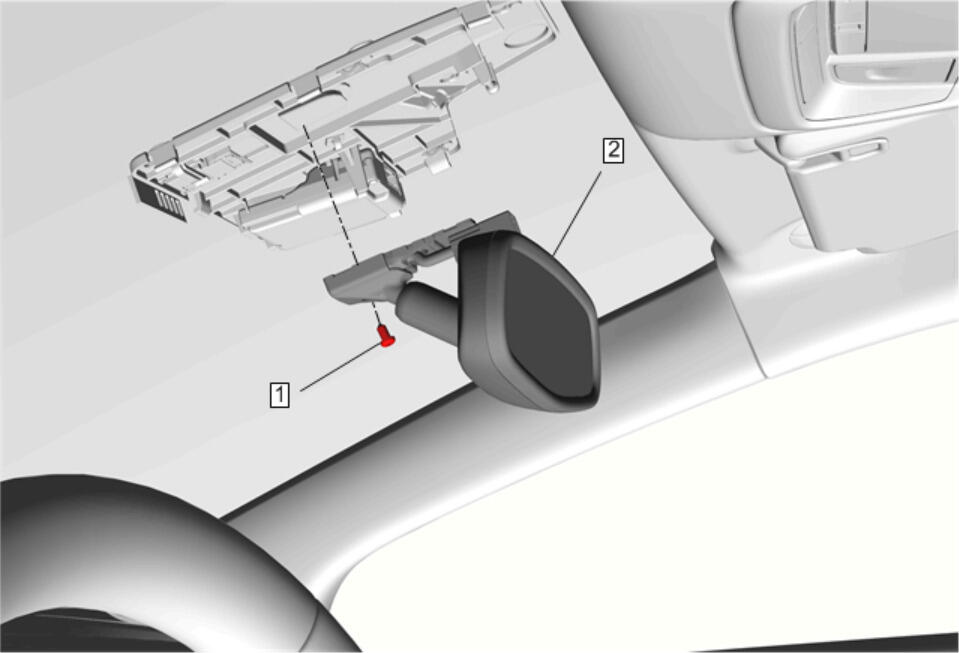

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Windshield Multifunction Sensor Mount Bracket Lower Cover. Refer to Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement
1	Inside Rearview Mirror Screw CAUTION: Refer to Fastener Caution . Procedure Adjust the mirror to the full upward position. Loosen the set screw located at the base of the mirror. Slide the mirror upward off of the rearview mirror button. Tighten 1.8 N.m (16 lb in)
2	Inside Rearview Mirror

Callout

Component Name

Preliminary Procedure
Remove Windshield Multifunction Sensor Mount Bracket Lower Cover. Refer to Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement

Inside Rearview Mirror Screw

CAUTION:

Procedure

Tighten
1.8 N.m (16 lb in)

Inside Rearview Mirror
