Radio Replacement

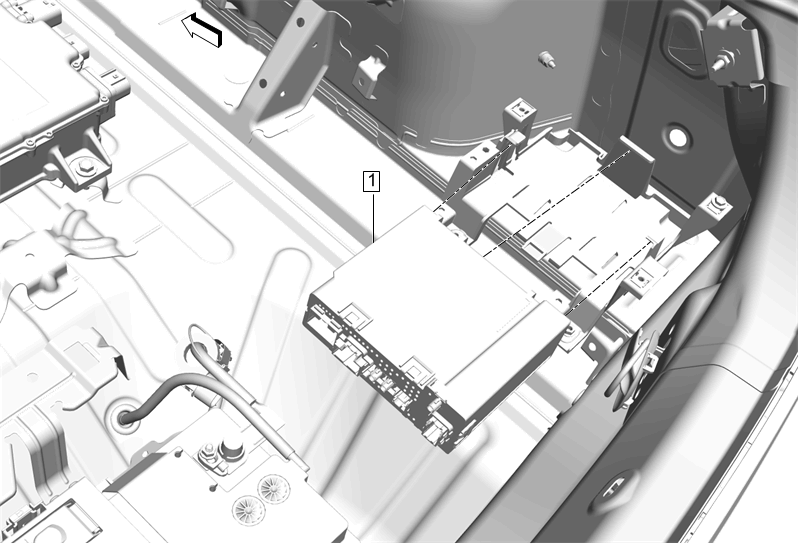

Fig 1: Radio

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Radio Speaker Amplifier. Refer to Radio Speaker Amplifier Replacement
1	Radio Procedure Release the retaining tabs. Disconnect all electrical connectors. Refer to Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Remove Radio Speaker Amplifier. Refer to Radio Speaker Amplifier Replacement

Radio

Procedure

Release the retaining tabs.
Disconnect all electrical connectors.
Refer to Control Module References for programming and setup information, if required.
