Rear Parking Assist Alarm Sensor Replacement

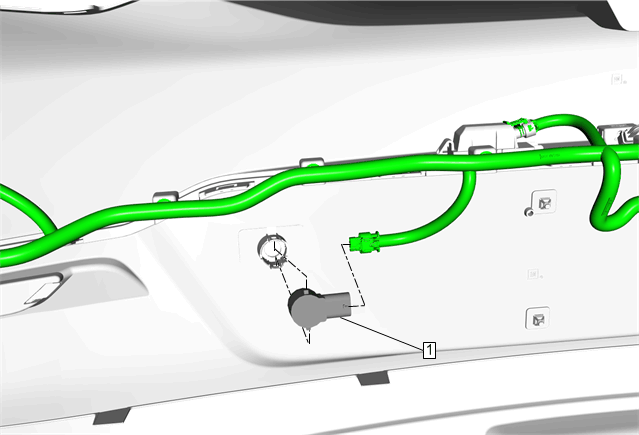

Fig 1: Rear Parking Assist Alarm Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Bumper Energy Absorber. Refer to Rear Bumper Energy Absorber Replacement
1	Rear Parking Assist Alarm Sensor Procedure Disconnect the electrical connector. Release the locking tab from the rear object alarm sensor bracket. Perform the necessary programming and setup procedure: Control Module References NOTE: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative.

Callout

Component Name

Preliminary Procedure
Remove Rear Bumper Energy Absorber. Refer to Rear Bumper Energy Absorber Replacement

Rear Parking Assist Alarm Sensor

Procedure

Disconnect the electrical connector.
Release the locking tab from the rear object alarm sensor bracket.
Perform the necessary programming and setup procedure: Control Module References

NOTE:

Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative.
