Advanced Parking Assist Alarm Sensor Replacement

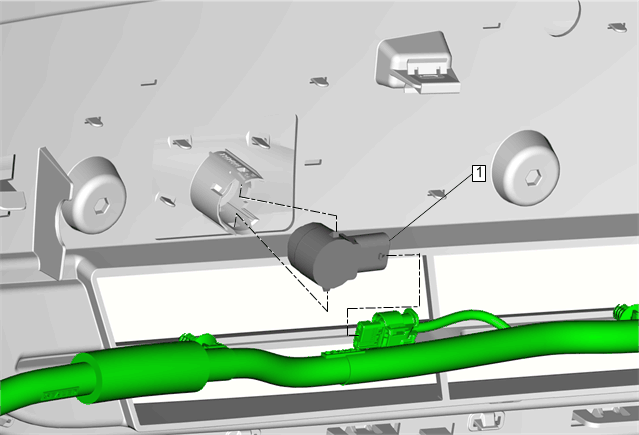

Fig 1: Advance Parking Assist Alarm Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Bumper Fascia Energy Absorber. Refer to Front Bumper Fascia Energy Absorber Replacement
1	Advance Parking Assist Alarm Sensor Procedure Disconnect the electrical connector. Release the locking tab from the advance parking assist alarm sensor bracket. Perform the necessary programming and setup procedure: Control Module References NOTE: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative

Callout

Component Name

Preliminary Procedure
Remove Front Bumper Fascia Energy Absorber. Refer to Front Bumper Fascia Energy Absorber Replacement

Advance Parking Assist Alarm Sensor

Procedure

Disconnect the electrical connector.
Release the locking tab from the advance parking assist alarm sensor bracket.
Perform the necessary programming and setup procedure: Control Module References

NOTE:

Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative
