Comprehensive Safety - Camera and Module Power, Ground and Controls (UEU/UHX/UGN)

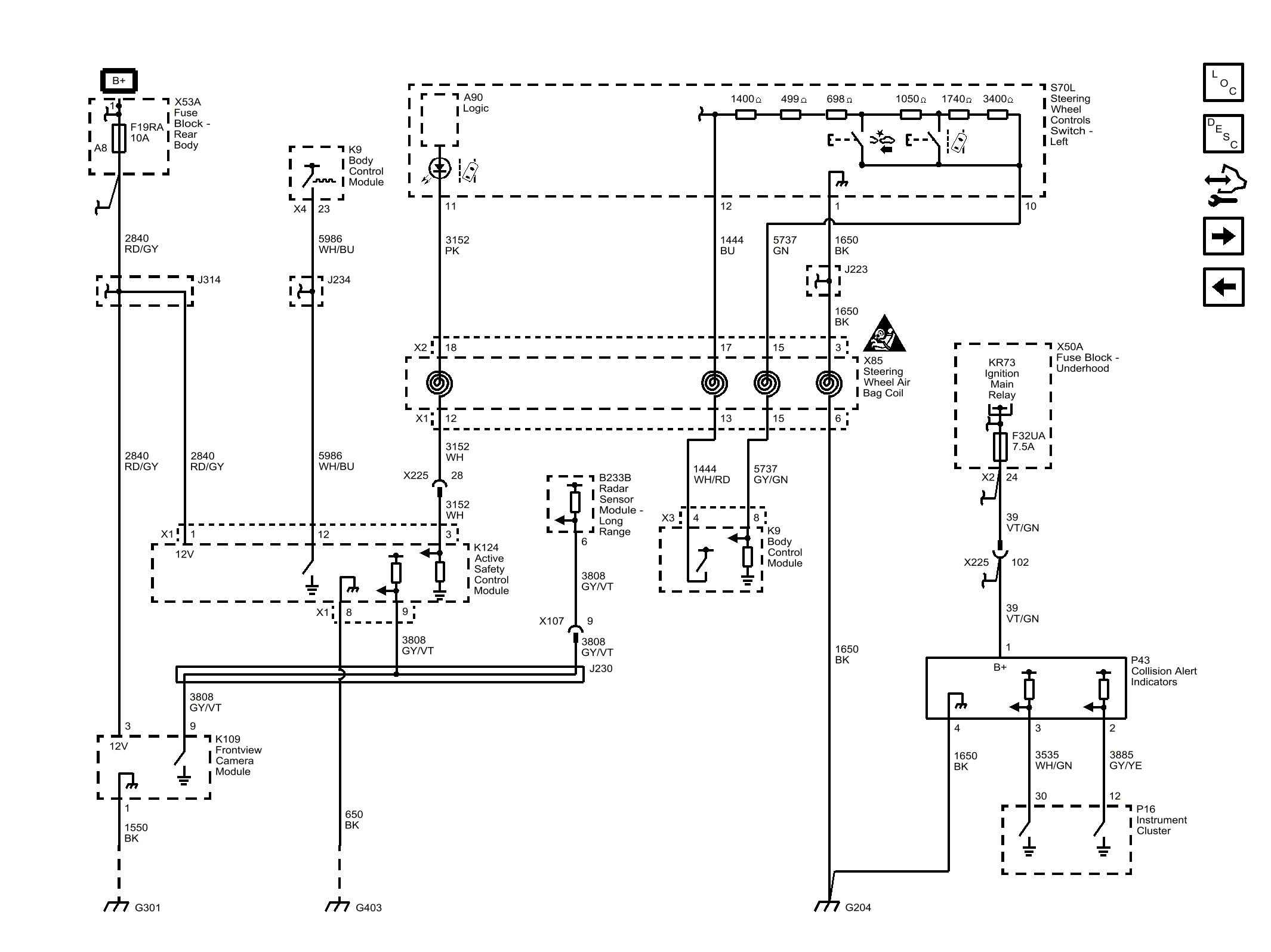

Fig 1: Comprehensive Safety - Camera and Module Power, Ground and Controls (UEU/UHX/UGN)
GM4310800Courtesy of GENERAL MOTORS COMPANY
