Low Frequency Instrument Panel Antenna Replacement

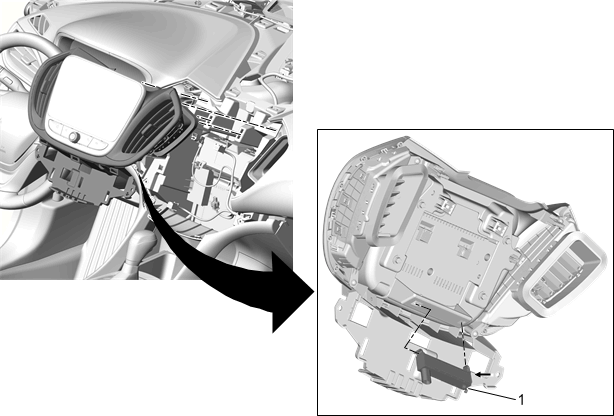

Fig 1: Low Frequency Instrument Panel Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Instrument Panel Center Air Outlet. Refer to Instrument Panel Center Air Outlet Replacement
1	Low Frequency Instrument Panel Antenna Procedure  Release the plastic retaining tabs.
