Cruise Control Switch Replacement

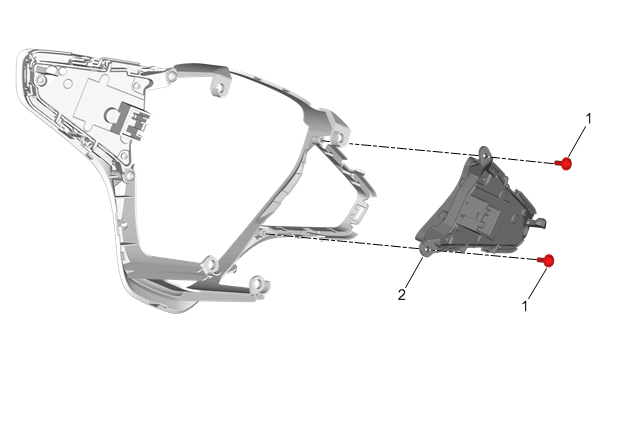

Fig 1: Cruise Control Switch
GM3984885Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Steering Wheel Spoke Cover. Refer to Steering Wheel Spoke Cover Replacement
1 Steering Wheel Spoke Cover Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Cruise Control Switch
Procedure
Remove the cruise control switch from the steering wheel spoke cover.
