Lane Departure Warning with Forward Collision Alert (UFL)

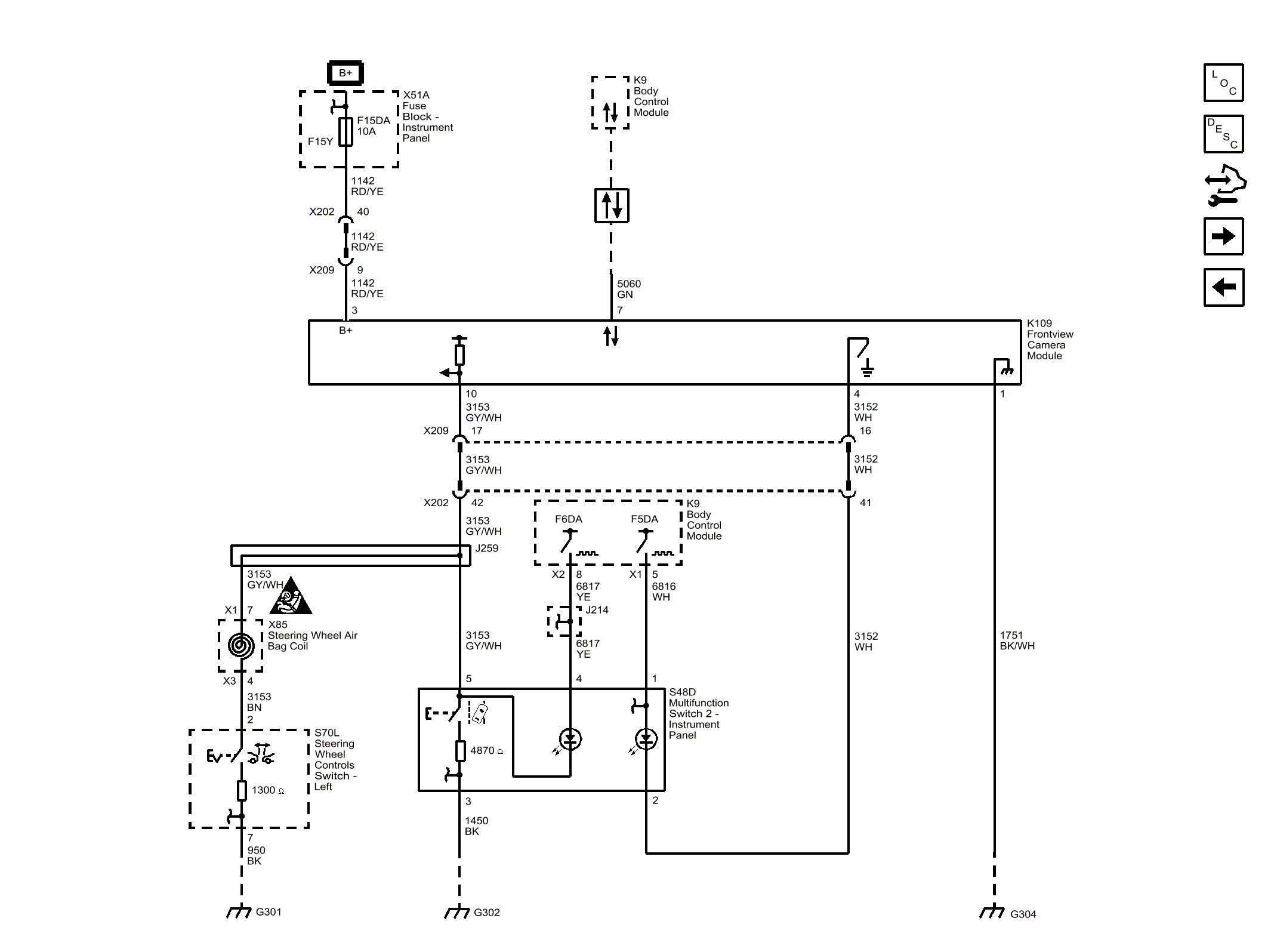

Fig 1: Lane Departure Warning with Forward Collision Alert (UFL)

GM4477171

Courtesy of GENERAL MOTORS COMPANY
