Installation Procedure

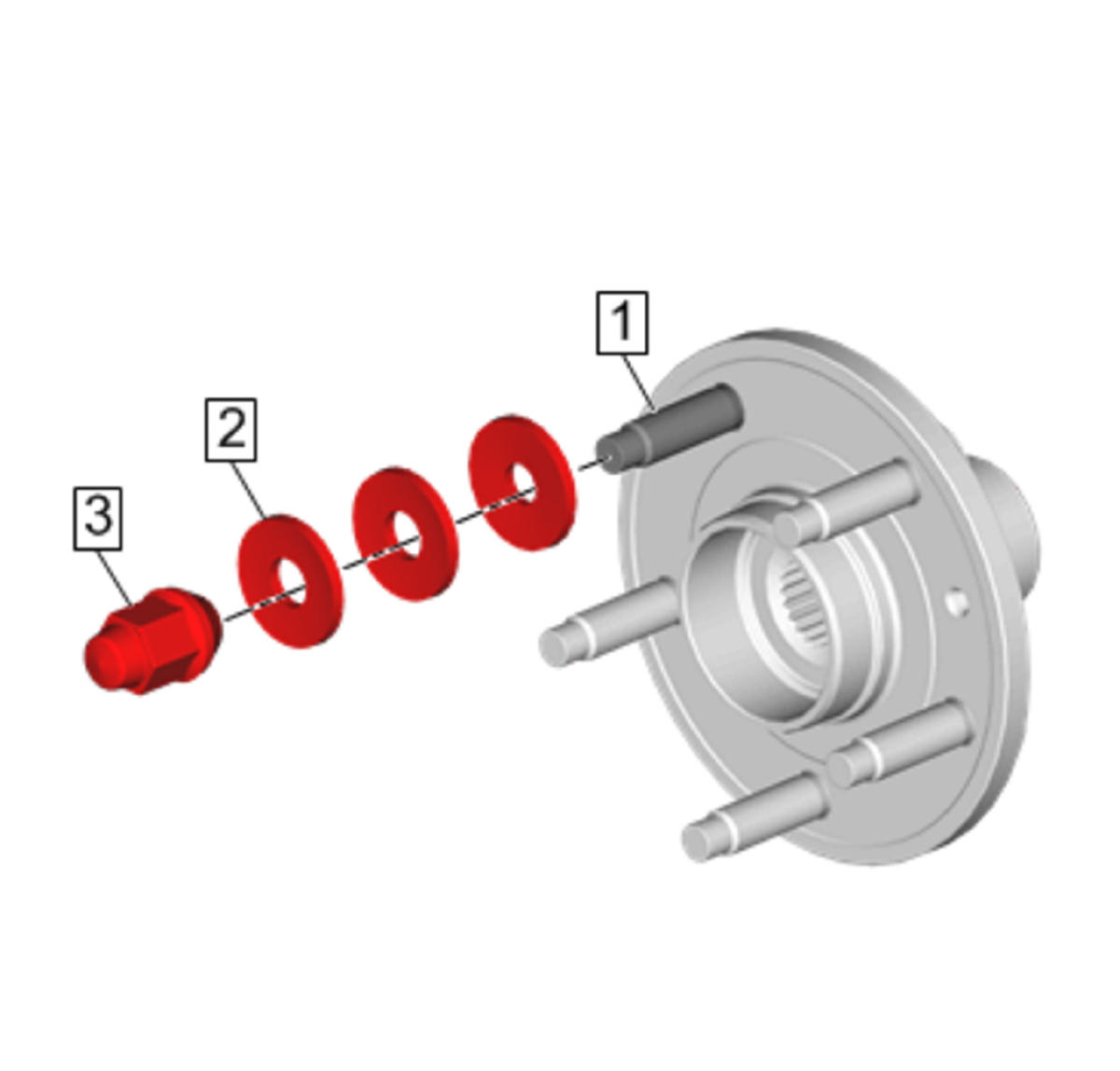

    Fig 1: Nut, Stud And Washers
    GM4368506Courtesy of GENERAL MOTORS COMPANY
  1. Position the NEW wheel stud (1) in the flange on the hub assembly.
  2. Install flat washers (2) and an OLD wheel nut (3) on the wheel stud.
  3. Use a suitable tool to prevent the flange on the hub assembly from rotating.
  4. Tighten the wheel nut until the wheel stud is firmly seated.
  5. Remove the wheel nut and flat washers.
  6. Install Front Wheel Bearing and Hub Assembly. Refer to Front Wheel Bearing and Hub Replacement
