Installation Procedure

    Fig 1: Front Lower Control Arm And Ball Stud
    GM4769274Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Lower Control Arm Ball Stud (1) @ Front Lower Control Arm (2)

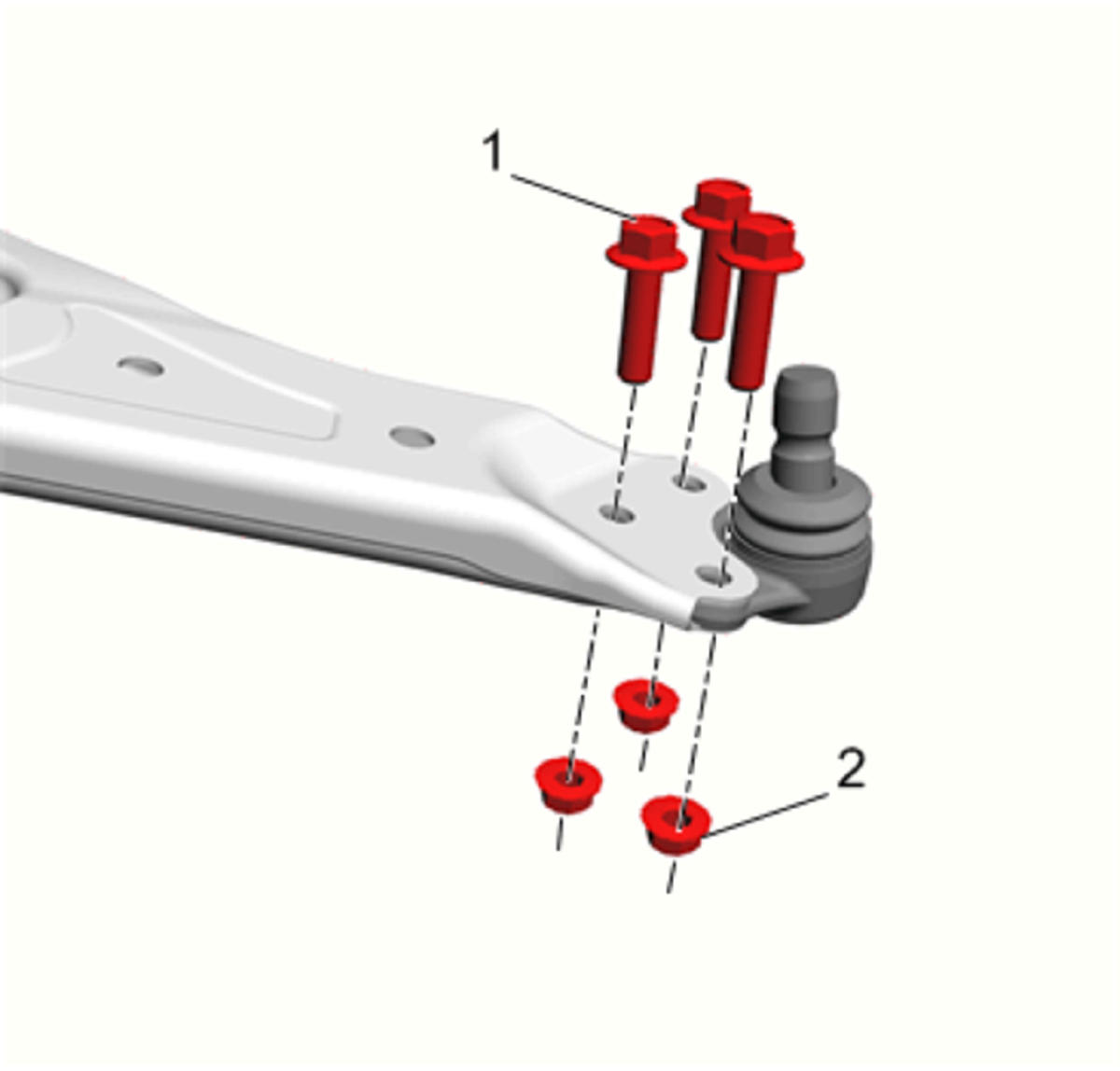

    2. Fig 2: Front Lower Control Arm Ball Stud Bolts And Nuts
    GM4769289Courtesy of GENERAL MOTORS COMPANY
  2. Install Front Lower Control Arm Ball Stud Bolts (1) (Qty: 3)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install and tighten Front Lower Control Arm Ball Stud Nuts (2) (Qty: 3) to 35 N.m (26 lb ft)
  4. Install Lower Control Arm. Refer to Lower Control Arm Replacement
