Forward Collision Alert (Chevrolet with UEU)

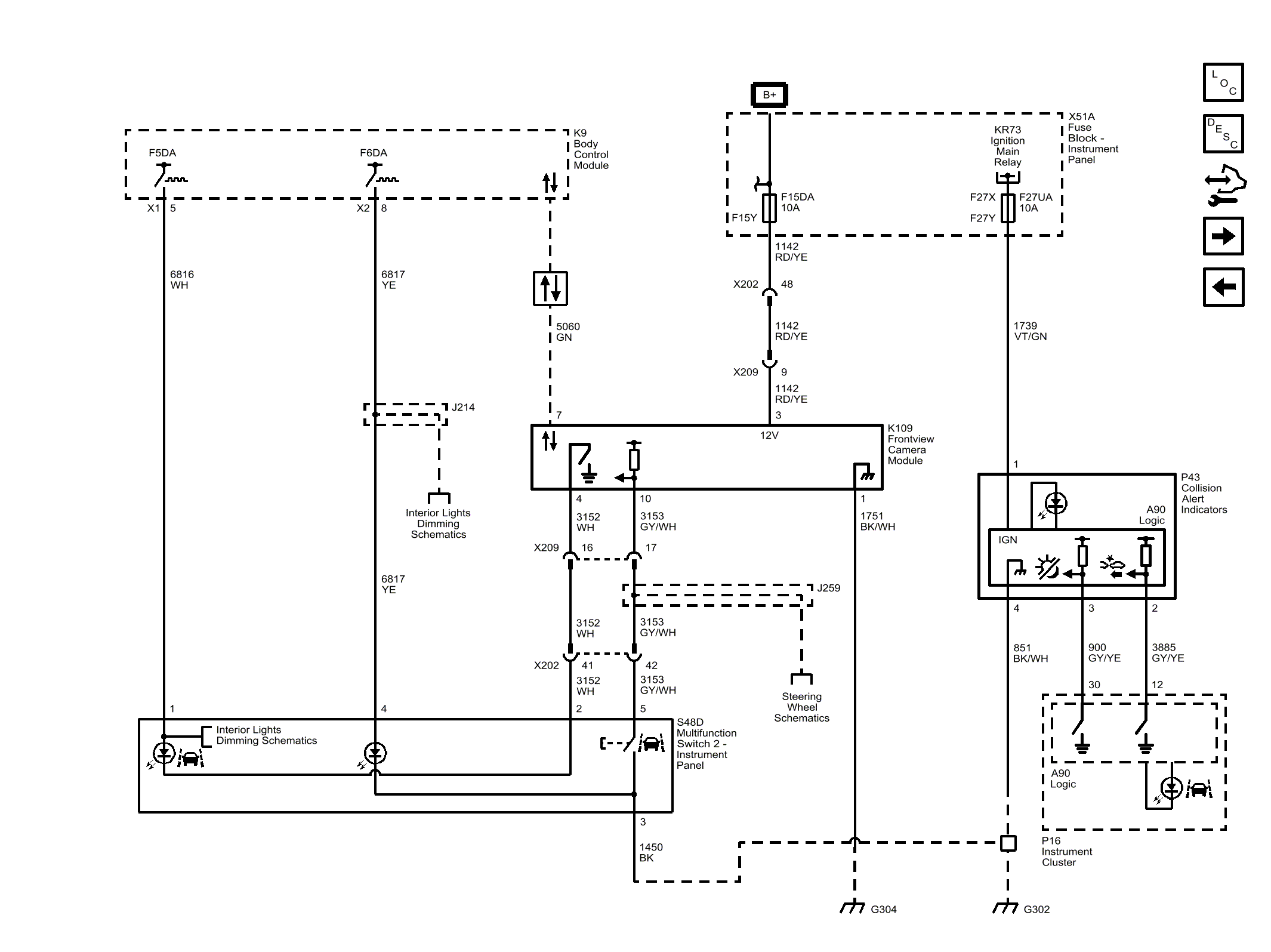

Fig 1: Forward Collision Alert (Chevrolet with UEU)

GM4517463

Courtesy of GENERAL MOTORS COMPANY
