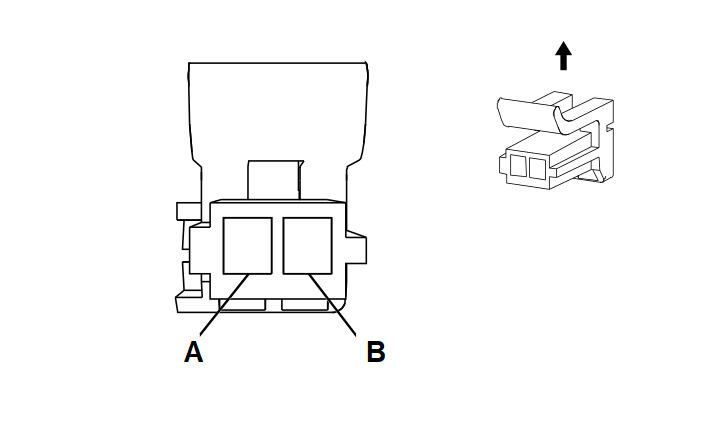

K71 Transmission Control Module X3 (MM1)
WARNING: This page is about a different car, the 2017 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Transmission Output Speed Sensor Pigtail
- OEM Connector: 13543034
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 150.2 Metri-Pack Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
- |
BK |
6356 |
Output Speed Low Signal |
I |
- |
| B |
- |
WH |
6355 |
Output Speed High Signal Output |
I |
- |
