Installation Procedure

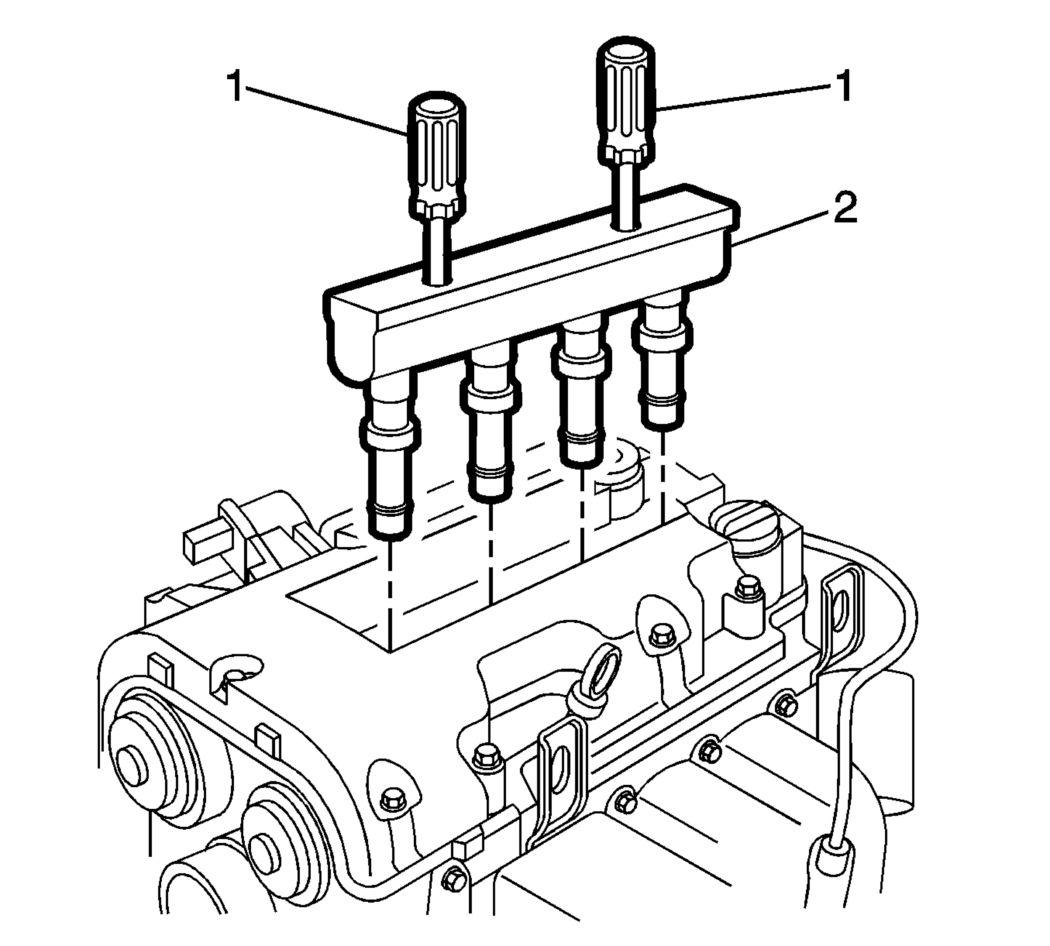

    Fig 1: Ignition Coil Remover/Installer
    GM2579391Courtesy of GENERAL MOTORS COMPANY
  1. Install the EN-6009 remover/installer (1).
  2. Install the ignition coil assembly (2).
  3. Remove the EN-6009 remover/installer (1).

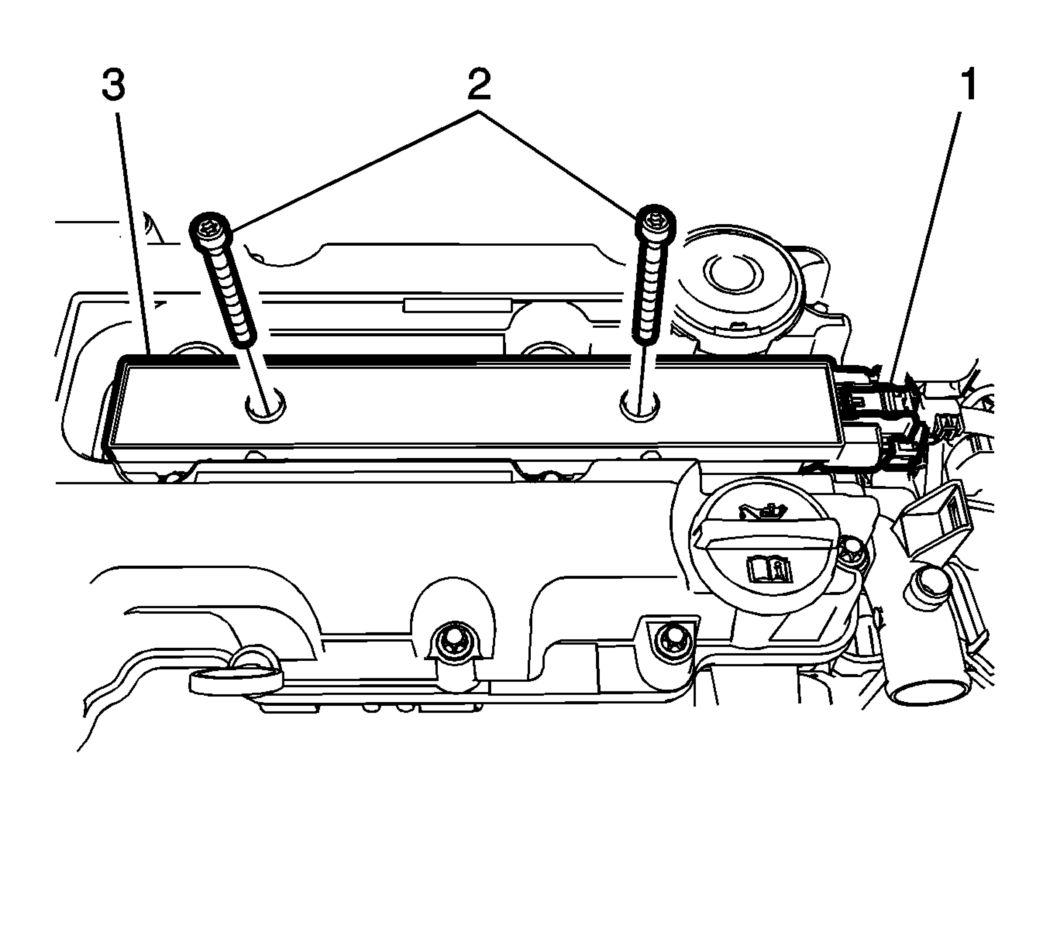

    4. Fig 2: Ignition Coil Wiring Harness Connector And Fasteners
    GM2508825Courtesy of GENERAL MOTORS COMPANY
  4. Install the 2 ignition coil assembly fasteners (2) and tighten to 8 N.m (71 lb in).
  5. Connect the ignition coil plug (1).
  6. Install the engine cover. Refer to Refer to Engine Cover Replacement .
  7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9) .
